Eaton
060616
Rail terminal bar
Manufacturer part number: 060616
Serie: xEnergy Safety CI
Type: N23RS33
EAN-code: 4015080606161
SKU Omnical: 2070506
Stock: 0.
Estimated lead time: 9 days *
PreOrder
M74
€
21,11
per item
€
16,74
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

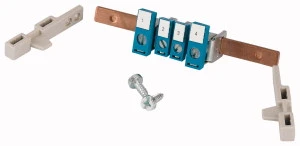

060616 Eaton Rail terminal bar
Eaton Rail terminal bar N-rail voor zekeringkast
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles
1
Connection type
Screwing
Number of connections < 6 mm²
0
Number of connections 10 mm²
0
Number of connections 16 mm²
2
Width
(mm)
200
Number of connections 25 mm²
0
Nominal current
(A)
63
Number of connections > 25 mm²
2
Number of connections total
0
Mounting method
Screw
Height
(mm)
30
Depth
(mm)
30
Contact safe
Yes
Number of connections < AWG 6
0
Number of connections AWG 6
0
Number of connections AWG 4
0
Number of connections AWG 2
0
Number of connections AWG 4/0
0
Number of connections 250 kcmil
0
Number of connections > 250 kcmil
0
Number of inputs
1
Number of outputs
3
Suitable for solid conductors
No
Suitable for stranded conductors
Yes
Suitable for fine strand conductors
No
Suitable for fine strand conductors without cable end sleeve
No
Suitable for extra fine-strand conductors
No
Suitable for extra fine-strand conductors without cable end sleeve
No
Conductor cross section, input
(mm²)
2.5 - 35
Conductor cross section, output
(mm²)
1.5 - 16
Conductor cross section, input AWG
2 - 14
Conductor cross section, output AWG
6 - 16
Stock and logistics
Height
0.03 m
Width
0.2 m
Depth
0.03 m
Packaging
box
Weight
0.104 kg
HS code
85389099
Country of Origin
PL
