Eaton
066167

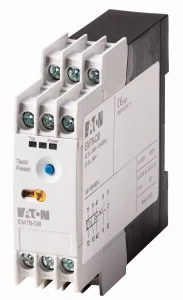

Temperature monitoring relay
Manufacturer part number: 066167
Serie: EMT
Type: EMT6-DB
EAN-code: 4015080661672
SKU Omnical: 1036306
Stock:
4 items.
Delivery time: 1-2 business days.
InStock
M87
€
251,17
per item
€
177,58
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
066167 Eaton Temperature monitoring relay
Eaton Temperature monitoring relay Thermistor motorbeveiliging (24..240Vac50-60Hz, 24..240Vdc), 6A
Datasheet
Type of electric connection
Screw connection
Rated control supply voltage at AC 50 Hz
(V)
24 - 240
Rated control supply voltage at AC 60 Hz
(V)
24 - 240
Rated control supply voltage at DC
(V)
24 - 240
Voltage type for actuating
AC/DC
Width
(mm)
23
With detachable clamps
No
Number of measuring circuits
1
Error registration possible
No
External reset possible
Yes
Number of contacts as normally closed contact
1
Number of contacts as normally open contact
1
Number of contacts as change-over contact
0
Height
(mm)
83
Depth
(mm)
103
Temperature measuring range
(°C)
0 - 0
Resistance measuring range
(Ohm)
750 - 12000
Voltage type of supply voltage
AC/DC
Supply voltage AC 50 Hz
(V)
24 - 240
Supply voltage AC 60 Hz
(V)
24 - 240
Supply voltage DC
(V)
24 - 240
Connection type auxiliary circuit
Screw connection
Voltage type (operating voltage)
AC/DC
Operating voltage at AC 50 Hz
(V)
24 - 240
Operating voltage at AC 60 Hz
(V)
24 - 240
Operating voltage at DC
(V)
24 - 240
Rated switch current
(A)
6
Stock and logistics
Height
0.027 m
Width
0.085 m
Depth
0.11 m
Packaging
box
Weight
0.15 kg
HS code
85364900
Country of Origin
CN
