Eaton 111017
Eaton

111017

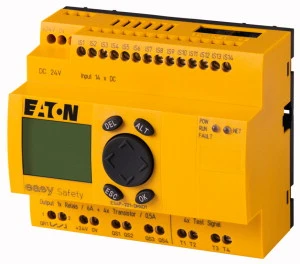

Logic module
Manufacturer part number: 111017
Serie: Easy
Type: ES4P-221-DMXD1

EAN-code: 4015081105274
SKU Omnical: 1119452

Stock: 0.

Estimated lead time: 7 days *
PreOrder

M93
777,82 per item
755,26 per item
EUR | Excluding VAT

Quantity
items
Add to cart
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
paypal
visa
mastercard
wire-transfer
111017 Eaton Logic module
Eaton Logic module Veiligheidsstuurrelais ES4P-221-DMXD1
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.

Datasheet

Supply voltage AC 50 Hz (V)
0 - 0
Supply voltage AC 60 Hz (V)
0 - 0
Supply voltage DC (V)
20.4 - 28.8
Voltage type of supply voltage
DC
Switching current (A)
8
Width (mm)
108
Number of analogue inputs
0
Number of analogue outputs
4
Number of digital inputs
14
Number of digital outputs
5
With relay output
Yes
Number of HW-interfaces industrial Ethernet
0
Number of interfaces PROFINET
0
Number of HW-interfaces RS-232
1
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
0
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
0
Number of HW-interfaces parallel
0
Number of HW-interfaces Wireless
0
Number of HW-interfaces other
3
With optical interface
No
Supporting protocol for TCP/IP
No
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
No
Supporting protocol for KNX
No
Supporting protocol for MODBUS
No
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
Yes
Radio standard Bluetooth
No
Radio standard Wi-Fi 802.11
No
Radio standard GPRS
No
Radio standard GSM
No
Radio standard UMTS
No
IO link master
No
Redundancy
Yes
With display
Yes
Degree of protection (IP)
IP20
Basic device
Yes
Expandable
Yes
Expansion device
No
With time switch clock
Yes
Rail mounting possible
Yes
Wall mounting/direct mounting
Yes
Front built-in possible
No
Rack-assembly possible
No
Suitable for safety functions
Yes
Category according to EN 954-1
4
Performance level according to EN ISO 13849-1
Level e
Appendant operation agent (Ex ia)
No
Appendant operation agent (Ex ib)
No
Explosion safety category for gas
None
Explosion safety category for dust
None
Height (mm)
90
Depth (mm)
72
SIL according to IEC 61508
3
Power consumption (W)
6
No
No
No
No
No
No
No
No
No
No
No
No
No

Stock and logistics

Height
0.084 m
Width
0.094 m
Depth
0.112 m

Packaging
item
Weight
0.416 kg
HS code
85371091
Country of Origin
DE
