Eaton
111760

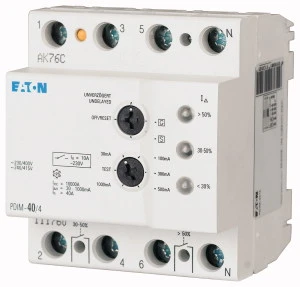

Residual current circuit breaker (RCCB)
Manufacturer part number: 111760
Serie: xPole
Type: PDIM-40/4
EAN-code: 4015081113101
SKU Omnical: 2069023
Stock: 0.
Estimated lead time: 37 days *
PreOrder
M76
€
518,92
per item
€
307,72
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
111760 Eaton Residual current circuit breaker (RCCB)
Eaton Residual current circuit breaker (RCCB) Foutstroom indicator PDIM-40/4 , 4 Polig , 40 A
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles
4
Rated fault current
(A)
1
Rated current
(A)
40
Leakage current type
AC
Selective protection
Yes
Rated voltage
(V)
415
Mounting method
DIN rail
Short-circuit breaking capacity (Icw)
(kA)
10
Surge current capacity
(kA)
0.25
Frequency
60 Hz
Additional equipment possible
Yes
Degree of protection (IP)
IP20
Construction size (according to DIN 43880)
1
Width in number of modular spacings
4
Built-in depth
(mm)
60
Short-time delayed tripping
Yes
Rated insulation voltage Ui
(V)
440
Rated impulse withstand voltage Uimp
(kV)
4
With interlocking device
Yes
Ambient temperature during operating
(°C)
-25 - 60
Pollution degree
2
Connectable conductor cross section multi-wired
(mm²)
1.5 - 16
Connectable conductor cross section solid-core
(mm²)
1.5 - 35
Voltage type
AC
Explosion-proof
No
RAL-number (similar)
7035
Stock and logistics
Height
0.075 m
Width
0.073 m
Depth
0.086 m
Packaging
box
Weight
0.358 kg
HS code
85362010
Country of Origin
CZ
