Eaton
116308
Fieldbus, decentr. periphery - communication module
Manufacturer part number: 116308
Serie: EU
Type: EU5C-SWD-DP
EAN-code: 4015081160488
SKU Omnical: 1104911
Stock: 0.
Estimated lead time: 9 days *
PreOrder
M94
€
229,83
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

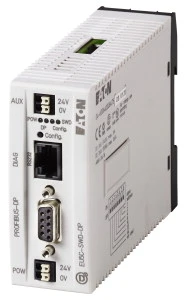

116308 Eaton Fieldbus, decentr. periphery - communication module
Eaton Fieldbus, decentr. periphery - communication module SmartWire gateway PROFIBUS-DP als slave
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Supply voltage AC 50 Hz
(V)
0 - 0
Supply voltage AC 60 Hz
(V)
0 - 0
Supply voltage DC
(V)
20.4 - 28.8
Voltage type of supply voltage
DC
Supporting protocol for TCP/IP
No
Width
(mm)
35
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
No
Supporting protocol for KNX
No
Supporting protocol for MODBUS
No
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
Yes
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for SERCOS
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
No
Radio standard Bluetooth
No
Radio standard Wi-Fi 802.11
No
Radio standard GPRS
No
Radio standard GSM
No
Radio standard UMTS
No
IO link master
No
System accessory
Yes
Degree of protection (IP)
IP20
With potential separation
No
Fieldbus connection over separate bus coupler possible
No
Rail mounting possible
Yes
Wall mounting/direct mounting
Yes
Front built-in possible
No
Rack-assembly possible
No
Suitable for safety functions
Yes
Performance level according to EN ISO 13849-1
None
Appendant operation agent (Ex ia)
No
Appendant operation agent (Ex ib)
No
Explosion safety category for gas
None
Explosion safety category for dust
None
Height
(mm)
90
Depth
(mm)
127
SIL according to IEC 61508
None
Radio standard eGPRS
No
Radio standard LTE
No
0
Number of HW-interfaces industrial Ethernet
0
Number of interfaces PROFINET
0
Number of HW-interfaces RS-232
1
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
0
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
0
Number of HW-interfaces parallel
0
Number of HW-interfaces Wireless
0
Number of HW-interfaces other
1
No
No
No
No
No
No
No
No
No
No
No
No
No
Stock and logistics
Height
0.118 m
Width
0.057 m
Depth
0.151 m
Packaging
item
Weight
0.208 kg
HS code
85389099
Country of Origin
DE
