Eaton
116961

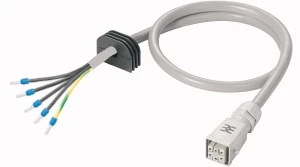

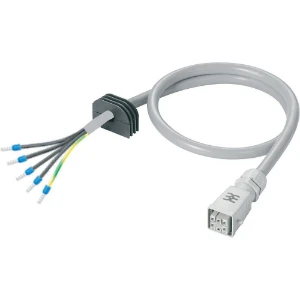

Power cord
Manufacturer part number: 116961
Serie: Rapid Link
Type: RA-C4-X/C3-1M5
EAN-code: 4015081167012
SKU Omnical: 2071171
Stock: 0.
Estimated lead time: 44 days *
PreOrder
SSL Connection
WorldWide Shipping
116961 Eaton Power cord
Eaton Power cord Energieleiding 1,5m voor RA-../C3A
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Connection 1
Other
Connection 2
Other
Number of cores
5
Nominal cross section conductor
(mm²)
1.5
Length
(m)
1.5
Material outer sheath
Other
Temperature resistance
(°C)
-10 - 55
Nominal voltage
(V)
500
Spiralized cable
No
Protective conductor
Yes
With cord switch
No
Outer diameter approximate
(mm)
10
System-oriented connector system
Yes
Colour outer sheath
Grey
Oil resistant according to EN IEC 60811-404
Yes
Nominal current
(A)
6.6
Nominal voltage
(V)
380 - 480
Frequency
(Hz)
50 - 60
With protective conductor
Yes
Degree of protection (IP)
Other
Reaction-to-fire according to EN 13501-6: Class
None
Reaction-to-fire according to EN 13501-6: Smoke production
None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
None
Reaction-to-fire according to EN 13501-6: Acidity
None
Cable entry connection 1
Straight
Cable entry connection 2
Straight
With personal protection PRCD
No
Stock and logistics
Height
0.03 m
Width
0.3 m
Depth
0.3 m
Packaging
item
Weight
1.38 kg
HS code
85444290
Country of Origin
DE
