Eaton
118703

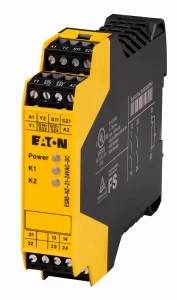

Two-hand control relay
Manufacturer part number: 118703
Serie: ESR
Type: ESR5-NZ-21-24VAC-DC
EAN-code: 4015081168439
SKU Omnical: 1125294
Stock: 0.
Estimated lead time: 10 days *
PreOrder
M87
€
307,50
per item
€
217,40
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
118703 Eaton Two-hand control relay
Eaton Two-hand control relay Veiligheidsrelais (24Vac50/60Hz, 24Vdc), 2 vrijgave paden , 1 meldc.
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Type of electric connection
Screw connection
Rail mounting possible
Yes
Rated control supply voltage at AC 50 Hz
(V)
0 - 24
Rated control supply voltage at AC 60 Hz
(V)
20.4 - 24
Rated control supply voltage at DC
(V)
0 - 24
Width
(mm)
22.5
Voltage type for actuating
AC/DC
With detachable clamps
Yes
Type of switch function of the inputs
Normally closed contact and normally open contact
With feedback circuit
Yes
With start input
No
Number of outputs, safety related, undelayed, with contact
2
Number of outputs, safety related, delayed, with contact
0
Number of outputs, safety related, undelayed, semiconductors
0
Number of outputs, safety related, delayed, semiconductors
0
Number of outputs, signalling function, undelayed, with contact
1
Number of outputs, signalling function, delayed, with contact
0
Number of outputs, signalling function, undelayed, semiconductors
0
Number of outputs, signalling function, delayed, semiconductors
0
Suitable for safety functions
Yes
Category according to EN 954-1
4
Type class for safety demands according to EN 574
Type III C
Performance level according to EN ISO 13849-1
Level e
With approval for TÜV
Yes
With approval for BG BIA
No
With approval according to UL
Yes
Height
(mm)
99
Depth
(mm)
114.5
SIL according to IEC 61508
3
Voltage type of supply voltage
AC/DC
Supply voltage AC 50 Hz
(V)
24 - 24
Supply voltage AC 60 Hz
(V)
24 - 24
Supply voltage DC
(V)
24 - 24
Type of control voltage 1
AC/DC
Control voltage 1
(V)
24 - 24
Type of control voltage 2
AC/DC
Control voltage 2
(V)
24 - 24
Voltage type (operating voltage)
AC/DC
Operating voltage at AC 50 Hz
(V)
24 - 24
Operating voltage at AC 60 Hz
(V)
24 - 24
Operating voltage at DC
(V)
24 - 24
Rated switch current
(A)
5
Stock and logistics
Height
0.039 m
Width
0.11 m
Depth
0.118 m
Packaging
box
Weight
0.227 kg
HS code
85364900
Country of Origin
DE
