Eaton 120677
Eaton

120677

Earth leakage circuit breaker
Manufacturer part number: 120677
Serie: xPole
Type: mRB4-20/3N/C/003-A

EAN-code: 4015081185078
SKU Omnical: 2069043

Stock: 0.

Estimated lead time: 7 days *
PreOrder

M76
258,03 per item
153,01 per item
EUR | Excluding VAT

Quantity
items
Add to cart
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
paypal
visa
mastercard
wire-transfer

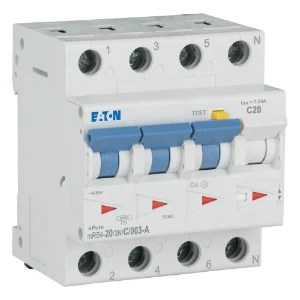

120677 Eaton Earth leakage circuit breaker
Eaton Earth leakage circuit breaker Aardlekautomaat (RCBO) mRB4, C-kar., 20A, 30mA, 4P incl. N, 4.5 kA
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.

Datasheet

Number of poles (total)
4
Number of protected poles
4
Rated voltage (V)
400
Rated current (A)
20
Rated fault current (A)
0.03
Leakage current type
A
Current limiting class
3
Rated short-circuit breaking capacity according to EN 60898 (kA)
4.5
Rated short-circuit breaking capacity according to IEC 60947-2 (kA)
4.5
Frequency
50 Hz
Release characteristic
C
Concurrently switching neutral conductor
Yes
Over voltage category
3
Pollution degree
2
Width in number of modular spacings
4
Built-in depth (mm)
70
Degree of protection (IP)
IP20
Suitable for flush-mounted installation
No
Surge current capacity (kA)
0.25
Voltage type
AC
Anti-nuisance tripping version
No
Rated insulation voltage Ui (V)
500
Rated impulse withstand voltage Uimp (kV)
4
Rated short-circuit breaking capacity according to EN 61009 (kA)
4.5
Rated short-circuit breaking capacity Icn according to EN 61009-1 (kA)
4.5
Disconnection characteristic
Undelayed
With interlocking device
No
Ambient temperature during operating (°C)
-25 - 40
Connectable conductor cross section solid-core (mm²)
1 - 25
Connectable conductor cross section multi-wired (mm²)
1 - 25
Flush-mounted installation
No

Stock and logistics

Height
0.075 m
Width
0.073 m
Depth
0.086 m

Packaging
item
Weight
0.469 kg
HS code
85362010
Country of Origin
RO
