Eaton
135883

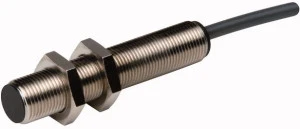

Inductive proximity switch
Manufacturer part number: 135883
Serie: E57
Type: E57-12GS02-D
EAN-code: 4015081326761
SKU Omnical: 2250233
Stock: 0.
Estimated lead time: 106 days *
PreOrder
SSL Connection
WorldWide Shipping
135883 Eaton Inductive proximity switch
Eaton Inductive proximity switch Ind. Sensor, DC, rond 12, Metaal, Kabel
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Width sensor
(mm)
0
Height of sensor
(mm)
0
Length of sensor
(mm)
50
Diameter sensor
(mm)
12
Mechanical mounting condition for sensor
Concise
Switching distance
(mm)
2
Suitable for safety functions
No
Type of switch function
Normally open contact
Type of switching output
PNP/NPN
Type of electric connection
Cable
Number of semiconductor outputs with signalling function
1
Number of contact energized outputs with signalling function
0
Number of protected semiconductor outputs
0
Number of protected contact energized outputs
0
Type of actuation
Metallic Target
Type of interface
None
Type of interface for safety communication
None
Construction type housing
Cylinder, screw-thread
Coating housing
Other
Cascadable
No
Category according to EN 954-1
B
Performance level according to EN ISO 13849-1
None
Max. output current at protected output
(mA)
0
Supply voltage
(V)
10 - 30
Rated control supply voltage at AC 50 Hz
(V)
0 - 0
Rated control supply voltage at AC 60 Hz
(V)
0 - 0
Rated control supply voltage at DC
(V)
10 - 30
Voltage type
DC
Switching frequency
(Hz)
2000
With monitoring function downstream switching devices
No
Material housing
Metal
Compression-resistant
No
Explosion safety category for gas
None
Explosion safety category for dust
None
SIL according to IEC 61508
None
Degree of protection (NEMA)
Other
Stock and logistics
Height
0.013 m
Width
0.14 m
Depth
0.165 m
Packaging
box
Weight
0.179 kg
HS code
85365019
Country of Origin
CN
