Eaton
158530
Power circuit-breaker for trafo/generator/installation protection
Manufacturer part number: 158530
Serie: MCCB's & Accessoires
Type: NZMH2-A100-FIA30
EAN-code: 4015081550807
SKU Omnical: 2252458
Stock: 0.
Estimated lead time: 46 days *
PreOrder
M79
$
1,827.05
per item
$
1,331.92
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

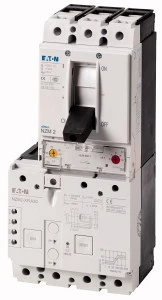

158530 Eaton Power circuit-breaker for trafo/generator/installation protection
Eaton Power circuit-breaker for trafo/generator/installation protection NZM2, 150kA, 3P, 100A, aardfoutbev., IEC
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Rated permanent current Iu
(A)
100
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
(kA)
150
Overload release current setting
(A)
80 - 100
Adjustment range short-term delayed short-circuit release
(A)
0 - 0
Adjustment range undelayed short-circuit release
(A)
600 - 1000
Integrated earth fault protection
No
Type of electrical connection of main circuit
Screw connection
Device construction
Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting
No
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
With switched-off indicator
No
With under voltage release
No
Number of poles
3
Position of connection for main current circuit
Front side
Type of control element
Rocker lever
Motor drive optional
Yes
Motor drive integrated
No
Degree of protection (IP)
IP20
Rated voltage
(V)
400 - 400
DIN rail (top hat rail) mounting optional
Yes
Complete device with protection unit
Yes
With integrated under voltage release
No
Power loss
(W)
25.7
Stock and logistics
Height
0.145 m
Width
0.14 m
Depth
0.293 m
Packaging
box
Weight
4.838 kg
HS code
85362090
Country of Origin
RO
