Eaton
169023
Power circuit-breaker for trafo/generator/installation protection
Manufacturer part number: 169023
Serie: MCCB's & Accessoires
Type: NZML2-VE100-SVE
EAN-code: 4015081655168
SKU Omnical: 2258776
Stock: 0.
Estimated lead time: 31 days *
PreOrder
M79
$
1,813.73
per item
$
1,322.21
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

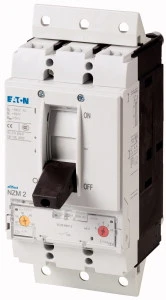

169023 Eaton Power circuit-breaker for trafo/generator/installation protection
Eaton Power circuit-breaker for trafo/generator/installation protection NZM2, 80kA @ 690V, 3P, 100A, voor insteeksokkel, IEC
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Rated permanent current Iu
(A)
100
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
(kA)
150
Overload release current setting
(A)
50 - 100
Adjustment range short-term delayed short-circuit release
(A)
100 - 1000
Adjustment range undelayed short-circuit release
(A)
1200 - 1200
Integrated earth fault protection
No
Type of electrical connection of main circuit
Screw connection
Device construction
Built-in device plug-in technique
Suitable for DIN rail (top hat rail) mounting
No
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
With switched-off indicator
No
With under voltage release
No
Number of poles
3
Position of connection for main current circuit
Front side
Type of control element
Rocker lever
Motor drive optional
Yes
Motor drive integrated
No
Degree of protection (IP)
IP20
Rated voltage
(V)
690 - 690
DIN rail (top hat rail) mounting optional
Yes
Complete device with protection unit
Yes
With integrated under voltage release
No
Stock and logistics
Height
0.245 m
Width
0.105 m
Depth
0.18 m
Packaging
box
Weight
2.896 kg
HS code
85362090
Country of Origin
RO
