Eaton
170216

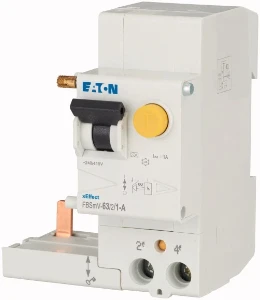

Residual current circuit breaker (RCCB) module
Manufacturer part number: 170216
Serie: xEffect
Type: FBSMV-63/2/1-A
EAN-code: 4015081667215
SKU Omnical: 4142004
Stock: 0.
Estimated lead time: 43 days *
PreOrder
M88
$
282.42
per item
$
183.57
per item
CAD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
170216 Eaton Residual current circuit breaker (RCCB) module
Eaton Residual current circuit breaker (RCCB) module Foutstroommodule voor FAZ, 63A, 2p, 1000mA, Type A
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Nominal voltage
(V)
240 - 415
Nominal current
(A)
63
Rated fault current adjustable
No
Rated fault current
(A)
1 - 1
Max. delay time
(ms)
0
Delay adjustable
No
Number of poles
2
Leakage current type
A
Surge current capacity
(kA)
0.25
Frequency
50 Hz
Rated insulation voltage Ui
(V)
440
Rated impulse withstand voltage Uimp
(kV)
4
Connectable conductor cross section solid-core
(mm²)
0.75 - 35
Connectable conductor cross section multi-wired
(mm²)
0.75 - 35
Anti-nuisance tripping version
No
With interlocking device
Yes
Degree of protection (IP)
IP20
Pollution degree
2
Ambient temperature during operating
(°C)
-25 - 40
Power loss
(W)
4.4
Stock and logistics
Height
0.075 m
Width
0.073 m
Depth
0.092 m
Packaging
box
Weight
0.245 kg
HS code
85362010
Country of Origin
CZ
