Eaton
170229

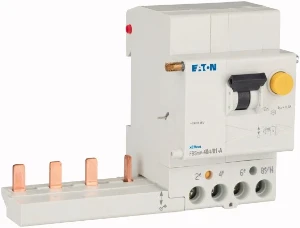

Residual current circuit breaker (RCCB) module
Manufacturer part number: 170229
Serie: xEffect
Type: FBSMV-40/4/01-A
EAN-code: 4015081667338
SKU Omnical: 4142014
Stock: 0.
Estimated lead time: 43 days *
PreOrder
M88
€
196,17
per item
€
127,51
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
170229 Eaton Residual current circuit breaker (RCCB) module
Eaton Residual current circuit breaker (RCCB) module Foutstroommodule voor FAZ, 40A, 4p, 100mA, Type A
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Nominal voltage
(V)
240 - 415
Nominal current
(A)
40
Rated fault current adjustable
No
Rated fault current
(A)
0.1 - 0.1
Max. delay time
(ms)
0
Delay adjustable
No
Number of poles
4
Leakage current type
A
Surge current capacity
(kA)
0.25
Frequency
50 Hz
Rated insulation voltage Ui
(V)
440
Rated impulse withstand voltage Uimp
(kV)
4
Connectable conductor cross section solid-core
(mm²)
0.75 - 35
Connectable conductor cross section multi-wired
(mm²)
0.75 - 35
Anti-nuisance tripping version
No
With interlocking device
Yes
Degree of protection (IP)
IP20
Pollution degree
2
Ambient temperature during operating
(°C)
-25 - 40
Power loss
(W)
8.9
Stock and logistics
Height
0.075 m
Width
0.073 m
Depth
0.092 m
Packaging
box
Weight
0.321 kg
HS code
85362010
Country of Origin
CZ
