Eaton
171890

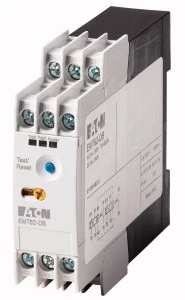

Temperature monitoring relay
Manufacturer part number: 171890
Serie: EMT
Type: EMT62-DB
EAN-code: 4015081685158
SKU Omnical: 2259064
Stock: 0.
Estimated lead time: 136 days *
PreOrder
M87
€
336,38
per item
€
237,82
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
171890 Eaton Temperature monitoring relay
Eaton Temperature monitoring relay Thermistor-motorbeveiliging (24..240Vac 50 - 400Hz, 24 - 240Vdc; met h
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Type of electric connection
Screw connection
Rated control supply voltage at AC 50 Hz
(V)
24 - 240
Rated control supply voltage at AC 60 Hz
(V)
24 - 240
Rated control supply voltage at DC
(V)
24 - 240
Voltage type for actuating
AC/DC
Width
(mm)
23
With detachable clamps
No
Number of measuring circuits
2
Error registration possible
No
External reset possible
Yes
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
2
Number of contacts as change-over contact
0
Height
(mm)
83
Depth
(mm)
103
Temperature measuring range
(°C)
0 - 0
Resistance measuring range
(Ohm)
750 - 12000
Voltage type of supply voltage
AC/DC
Supply voltage AC 50 Hz
(V)
24 - 240
Supply voltage AC 60 Hz
(V)
24 - 240
Supply voltage DC
(V)
24 - 240
Connection type auxiliary circuit
Screw connection
Voltage type (operating voltage)
AC/DC
Operating voltage at AC 50 Hz
(V)
24 - 240
Operating voltage at AC 60 Hz
(V)
24 - 240
Operating voltage at DC
(V)
24 - 240
Rated switch current
(A)
6
Stock and logistics
Height
0.07 m
Width
0.03 m
Depth
0.105 m
Packaging
box
Weight
0.171 kg
HS code
85364900
Country of Origin
CN
