Eaton 1742432
Eaton

1742432

Earth leakage circuit breaker
Manufacturer part number: 1742432
Serie: Systeem 55 Protective Devices
Type: mRB6-16-3N-C-003-A-FL

EAN-code: 8711426741553
SKU Omnical: 1163125

Stock: 55 items.

Delivery time: 1-2 business days.
InStock

M71
263,41 per item
126,17 per item
EUR | Excluding VAT

Quantity
item
Add to cart
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
paypal
visa
mastercard
wire-transfer

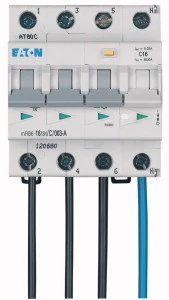

1742432 Eaton Earth leakage circuit breaker
Eaton Earth leakage circuit breaker Aardlek.aut 6kA 3P+N 16A C-kar 30mA FLEX

Datasheet

Number of poles (total)
4
Number of protected poles
1
Rated voltage (V)
400
Rated current (A)
16
Rated fault current (A)
0.03
Leakage current type
A
Current limiting class
3
Rated short-circuit breaking capacity according to EN 60898 (kA)
6
Rated short-circuit breaking capacity according to IEC 60947-2 (kA)
0
Frequency
50 Hz
Release characteristic
C
Concurrently switching neutral conductor
Yes
Over voltage category
2
Pollution degree
3
Width in number of modular spacings
4
Built-in depth (mm)
70
Degree of protection (IP)
IP20
Suitable for flush-mounted installation
No
Surge current capacity (kA)
6
Voltage type
AC
Anti-nuisance tripping version
No
Rated insulation voltage Ui (V)
500
Rated impulse withstand voltage Uimp (kV)
4
Rated short-circuit breaking capacity according to EN 61009 (kA)
6
Rated short-circuit breaking capacity Icn according to EN 61009-1 (kA)
6
Disconnection characteristic
Other
With interlocking device
No
Ambient temperature during operating (°C)
-25 - 40
Connectable conductor cross section solid-core (mm²)
1 - 25
Connectable conductor cross section multi-wired (mm²)
1 - 25

Stock and logistics

Height
0.074 m
Width
0.084 m
Depth
0.146 m

Packaging
item
Weight
0.22 kg
HS code
85389099
Country of Origin
RO
