Eaton
174750
Fieldbus, decentr. periphery - digital I/O module
Manufacturer part number: 174750
Serie: EU
Type: EU8E-SWD-16DD
EAN-code: 4015081712366
SKU Omnical: 2539560
Stock: 0.
Estimated lead time: 39 days *
PreOrder
M94
€
753,20
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

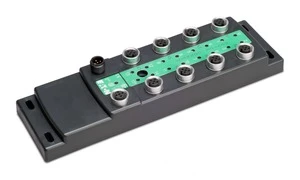

174750 Eaton Fieldbus, decentr. periphery - digital I/O module
Eaton Fieldbus, decentr. periphery - digital I/O module SmartWire I/O-module IP69K, 24 V DC, 16 configureerbare in-/uitgangen
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Supply voltage AC 50 Hz
(V)
0 - 0
Supply voltage AC 60 Hz
(V)
0 - 0
Supply voltage DC
(V)
20.4 - 28.8
Voltage type of supply voltage
DC
Number of digital inputs
16
Width
(mm)
61.6
Number of digital outputs
16
Digital inputs configurable
Yes
Digital outputs configurable
Yes
Input current at signal 1
(mA)
4
Permitted voltage at input
(V)
20.4 - 28.8
Type of voltage (input voltage)
DC
Type of digital output
Other
Output current
(A)
0.5
Permitted voltage at output
(V)
20.4 - 28.8
Type of output voltage
DC
Short-circuit protection, outputs available
Yes
Number of HW-interfaces industrial Ethernet
0
Number of interfaces PROFINET
0
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
0
Number of HW-interfaces serial TTY
0
Number of HW-interfaces parallel
0
Number of HW-interfaces Wireless
0
Number of HW-interfaces other
0
With optical interface
No
Supporting protocol for TCP/IP
No
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
No
Supporting protocol for KNX
No
Supporting protocol for MODBUS
No
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
Yes
Radio standard Bluetooth
No
Radio standard Wi-Fi 802.11
No
Radio standard GPRS
No
Radio standard GSM
No
Radio standard UMTS
No
IO link master
No
System accessory
Yes
Degree of protection (IP)
IP69K
Type of electric connection
Screw connection
Time delay at signal exchange
(ms)
0.2 - 0.2
Fieldbus connection over separate bus coupler possible
Yes
Rail mounting possible
No
Wall mounting/direct mounting
Yes
Front built-in possible
No
Rack-assembly possible
No
Suitable for safety functions
No
Category according to EN 954-1
None
Performance level according to EN ISO 13849-1
None
Appendant operation agent (Ex ia)
No
Appendant operation agent (Ex ib)
No
Explosion safety category for gas
None
Explosion safety category for dust
None
Height
(mm)
212.6
Depth
(mm)
34
SIL according to IEC 61508
None
Number of HW-interfaces USB
0
No
No
No
No
No
No
No
No
No
No
No
No
No
Stock and logistics
Height
0.23 m
Width
0.165 m
Depth
0.045 m
Packaging
box
Weight
0.4 kg
HS code
84718000
Country of Origin
MX
