Eaton
183458

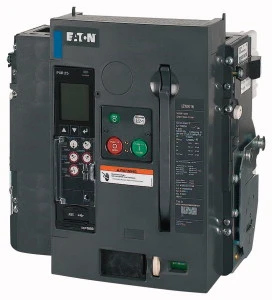

Power circuit-breaker for trafo/generator/installation protection
Manufacturer part number: 183458
Serie: ACB's & accessoires
Type: IZMX16B4-P08W-1
EAN-code: 4015081791941
SKU Omnical: 2540367
Stock: 0.
Estimated lead time: 37 days *
PreOrder
ZDR
$
11,805.06
per item
$
7,083.04
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
183458 Eaton Power circuit-breaker for trafo/generator/installation protection
Eaton Power circuit-breaker for trafo/generator/installation protection Vermogensautomaat IZMX16, 4p, 800A, Uitrijbaar
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Rated permanent current Iu
(A)
800
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
(kA)
42
Overload release current setting
(A)
320 - 800
Adjustment range short-term delayed short-circuit release
(A)
480 - 8000
Adjustment range undelayed short-circuit release
(A)
1600 - 12000
Integrated earth fault protection
No
Type of electrical connection of main circuit
Rail connection
Device construction
Built-in device slide-in technique (withdrawable)
Suitable for DIN rail (top hat rail) mounting
No
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
2
With switched-off indicator
Yes
With under voltage release
No
Number of poles
4
Position of connection for main current circuit
Back side
Type of control element
Push button
Motor drive optional
Yes
Motor drive integrated
No
Degree of protection (IP)
IP31
Rated voltage
(V)
690 - 690
DIN rail (top hat rail) mounting optional
No
Complete device with protection unit
Yes
With integrated under voltage release
No
Power loss
(W)
80
Stock and logistics
Height
0.597 m
Width
0.521 m
Depth
0.584 m
Packaging
box
Weight
34.2 kg
HS code
85362090
Country of Origin
CN
