Eaton
189677

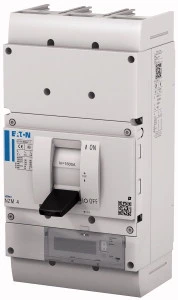

Power circuit-breaker for trafo/generator/installation protection
Manufacturer part number: 189677
Serie: MCCB's & Accessoires
Type: NZMH4-4-PX800/VAR-TAZ-AVE
EAN-code: 4015081876242
SKU Omnical: 3036468
Stock: 0.
Estimated lead time: 25 days *
PreOrder
M79
$
12,205.88
per item
$
8,898.09
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
189677 Eaton Power circuit-breaker for trafo/generator/installation protection
Eaton Power circuit-breaker for trafo/generator/installation protection NZM4, 100kA, 4P, 800A, aardfoutbev., ARMS, ZSI, voor uitrijsokkel, IEC
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Rated permanent current Iu
(A)
800
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
(kA)
50
Overload release current setting
(A)
320 - 800
Adjustment range short-term delayed short-circuit release
(A)
2 - 10
Adjustment range undelayed short-circuit release
(A)
2 - 18
Integrated earth fault protection
Yes
Type of electrical connection of main circuit
Other
Device construction
Built-in device slide-in technique (withdrawable)
Suitable for DIN rail (top hat rail) mounting
No
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
With switched-off indicator
No
With under voltage release
No
Number of poles
4
Position of connection for main current circuit
Connection at separate chassis part
Type of control element
Rocker lever
Motor drive optional
Yes
Motor drive integrated
No
Degree of protection (IP)
IP20
Rated voltage
(V)
690 - 690
DIN rail (top hat rail) mounting optional
No
Complete device with protection unit
Yes
With integrated under voltage release
No
Stock and logistics
Height
0.35 m
Width
0.33 m
Depth
0.56 m
Packaging
item
Weight
37 kg
HS code
85362090
Country of Origin
DE
