Eaton
191082
PLC CPU-module
Manufacturer part number: 191082
Serie: XC
Type: XC-303-C11-000
EAN-code: 4015081915682
SKU Omnical: 2542180
Stock: 0.
Estimated lead time: 9 days *
PreOrder
M91
$
1,038.83
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

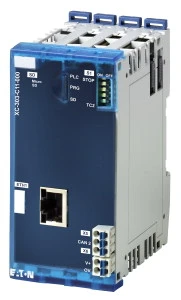

191082 Eaton PLC CPU-module
Eaton PLC CPU-module PLC, 1x Eth 1GBit/s, 1x Eth 100MBit/s, 1x CAN
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of HW-interfaces industrial Ethernet
0
Number of digital inputs
0
Number of digital outputs
0
Number of analogue inputs
0
Number of analogue outputs
0
Supply voltage AC 50 Hz
(V)
0 - 0
Supply voltage AC 60 Hz
(V)
0 - 0
Supply voltage DC
(V)
18 - 30
Voltage type of supply voltage
DC
Number of relay outputs
0
Width
(mm)
85
Max. number of time switches
1000
Max. number of addressable analogue I/O-ports
256
Max. number of addressable digital I/O-ports
640
Model
Modular
Processing time (1K, binary operation)
(ms)
0.001
Number of interfaces PROFINET
0
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
0
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
0
Number of HW-interfaces parallel
0
Number of HW-interfaces Wireless
0
Number of HW-interfaces other
1
With optical interface
No
Supporting protocol for TCP/IP
Yes
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
Yes
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
No
Supporting protocol for KNX
No
Supporting protocol for MODBUS
Yes
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
Yes
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
Yes
Radio standard Bluetooth
No
Radio standard Wi-Fi 802.11
No
Radio standard GPRS
No
Radio standard GSM
No
Radio standard UMTS
No
IO link master
No
System accessory
Yes
Redundancy
Yes
With display
No
Type of memory
RAM
Memory size
(kByte)
512000
Additional program memory possible
Yes
Rail mounting possible
Yes
Wall mounting/direct mounting
No
Front built-in possible
No
Rack-assembly possible
No
Suitable for safety functions
No
Performance level according to EN ISO 13849-1
None
Appendant operation agent (Ex ia)
No
Appendant operation agent (Ex ib)
No
Explosion safety category for gas
None
Explosion safety category for dust
None
Height
(mm)
65
Depth
(mm)
108
SIL according to IEC 61508
None
Supporting protocol for DNP3
No
Supporting protocol for IEC 60870
No
Supporting protocol for IEC 61850 Ethernet
No
Long-Term Evolution (LTE)
No
No
No
No
No
No
No
No
No
No
No
No
No
No
Stock and logistics
Height
0.07 m
Width
0.09 m
Depth
0.115 m
Packaging
box
Weight
0.35 kg
HS code
85371091
Country of Origin
EE
