Eaton
199233
Power contactor, AC switching
Manufacturer part number: 199233
Serie: DILM
Type: DILM9-10(24VDC)-PI
EAN-code: 4015081973170
SKU Omnical: 4100432
Stock:
295 items.
Delivery time: 1-2 business days.
InStock
M87
€
59,48
per item
€
42,05
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

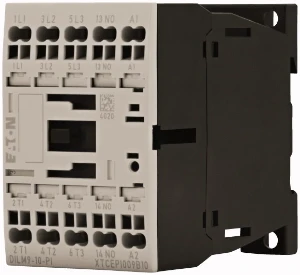

199233 Eaton Power contactor, AC switching
Eaton Power contactor, AC switching Magneetschakelaar DILM9-10(24VDC), 4kW, 1m, 0v, Push-in
Datasheet
Rated operation power at AC-3, 400 V
(kW)
4
Voltage type for actuating
DC
Rated control supply voltage at AC 50 Hz
(V)
0 - 0
Rated control supply voltage at AC 60 Hz
(V)
0 - 0
Rated control supply voltage at DC
(V)
24 - 24
Number of normally closed contacts as main contact
0
Number of normally open contacts as main contact
3
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as normally closed contact
0
Rated operation current Ie at AC-1, 400 V
(A)
22
Rated operation current Ie at AC-3, 400 V
(A)
9
Rated operation current Ie at AC-4, 400 V
(A)
6
Rated operation power at AC-4, 400 V
(kW)
2.5
Modular version
No
Width
(mm)
45
Type of electrical connection of main circuit
Spring clamp connection
Height
(mm)
68
Depth
(mm)
75
Rated operation power NEMA
(kW)
0
Operating voltage at AC 50 Hz
(V)
24 - 690
Operating voltage at AC 60 Hz
(V)
24 - 690
Stock and logistics
Height
0.07 m
Width
0.046 m
Depth
0.079 m
Packaging
box
Weight
0.298 kg
HS code
85364900
Country of Origin
RO
