Eaton
199293
Power contactor, AC switching
Manufacturer part number: 199293
Serie: DILM
Type: DILM32-11(RDC24)-PI
EAN-code: 4015081973774
SKU Omnical: 4100487
Stock:
23 items.
Delivery time: 1-2 business days.
InStock
M87
€
254,95
per item
€
180,25
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

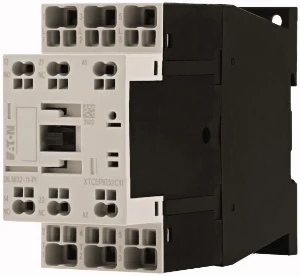

199293 Eaton Power contactor, AC switching
Eaton Power contactor, AC switching Magneetschakelaar DILM32-11(RDC24) (24-27VDC), 15kW, 1m, 1v, Push-in
Datasheet
Rated operation power at AC-3, 400 V
(kW)
15
Voltage type for actuating
DC
Rated control supply voltage at AC 50 Hz
(V)
0 - 0
Rated control supply voltage at AC 60 Hz
(V)
0 - 0
Rated control supply voltage at DC
(V)
27 - 27
Number of normally closed contacts as main contact
0
Number of normally open contacts as main contact
3
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as normally closed contact
1
Rated operation current Ie at AC-1, 400 V
(A)
45
Rated operation current Ie at AC-3, 400 V
(A)
32
Rated operation current Ie at AC-4, 400 V
(A)
15
Rated operation power at AC-4, 400 V
(kW)
7
Modular version
No
Width
(mm)
45
Type of electrical connection of main circuit
Spring clamp connection
Height
(mm)
85
Depth
(mm)
115
Rated operation power NEMA
(kW)
0
Operating voltage at AC 50 Hz
(V)
24 - 690
Operating voltage at AC 60 Hz
(V)
24 - 690
Stock and logistics
Height
0.121 m
Width
0.049 m
Depth
0.088 m
Packaging
box
Weight
0.565 kg
HS code
85364900
Country of Origin
RO
