Eaton 207406
Eaton

207406

Switch disconnector
Manufacturer part number: 207406
Serie: T nokkenschakelaar
Type: T0-2-8900/V/SVB-SW

EAN-code: 4015082074067
SKU Omnical: 1102166

Stock: 130 items.

Delivery time: 1-2 business days.
InStock

M84
63,24 per item
44,27 per item
EUR | Excluding VAT

Quantity
item
Add to cart
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
paypal
visa
mastercard
wire-transfer

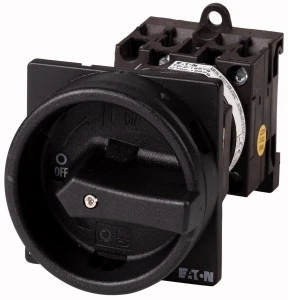

207406 Eaton Switch disconnector
Eaton Switch disconnector Hoofdschakelaar, 3-polig + N, 20 A, HOLD-functie, 90 °, afsluitbaar in

Datasheet

Version as main switch
Yes
Version as maintenance-/service switch
Yes
Version as safety switch
No
Version as emergency stop installation
No
Max. rated operation voltage Ue AC (V)
690
Rated permanent current Iu (A)
20
Rated operation power at AC-23, 400 V (kW)
5.5
Conditioned rated short-circuit current Iq (kA)
6
Number of poles
4
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
Motor drive optional
No
Motor drive integrated
No
Voltage release optional
No
Device construction
Built-in device fixed built-in technique
Suitable for floor mounting
Yes
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
No
Suitable for intermediate mounting
Yes
Type of control element
Door coupling rotary drive
Interlockable
Yes
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP), front side
IP65
Version as reversing switch
No
Rated operating voltage (V)
690 - 690
Rated permanent current at AC-21, 400 V (A)
20
Rated operation power at AC-3, 400 V (kW)
5.5
Rated short-time withstand current lcw (kA)
0.32
Switching power at 400 V (kW)
5.5
Colour control element
Black
Number of switches
1
Rated permanent current at AC-23, 400 V (A)
13.3
Degree of protection (NEMA)
12

Stock and logistics

Height
0.065 m
Width
0.075 m
Depth
0.051 m

Packaging
item
Weight
0.158 kg
HS code
85365080
Country of Origin
GB
