Eaton
226157

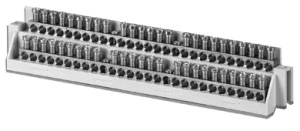

Rail terminal bar
Manufacturer part number: 226157
Serie: ZSD accessories
Type: ZSD-PKL/NPE/2
EAN-code: 4015082261573
SKU Omnical: 2542812
Stock: 0.
Estimated lead time: 30 days *
PreOrder
M73
€
35,38
per item
€
25,79
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
226157 Eaton Rail terminal bar
Eaton Rail terminal bar Klemmenhouder
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles
1
Connection type
Screwing
Number of connections < 6 mm²
0
Number of connections 10 mm²
46
Number of connections 16 mm²
2
Width
(mm)
60
Number of connections 25 mm²
0
Nominal current
(A)
63
Number of connections > 25 mm²
0
Number of connections total
50
Mounting method
DIN rail
Height
(mm)
30
Depth
(mm)
250
Contact safe
No
Number of connections < AWG 6
0
Number of connections AWG 6
0
Number of connections AWG 4
0
Number of connections AWG 2
0
Number of connections AWG 4/0
0
Number of connections 250 kcmil
0
Number of connections > 250 kcmil
0
Number of inputs
2
Number of outputs
23
Suitable for solid conductors
Yes
Suitable for stranded conductors
Yes
Suitable for fine strand conductors
Yes
Suitable for fine strand conductors without cable end sleeve
No
Suitable for extra fine-strand conductors
No
Suitable for extra fine-strand conductors without cable end sleeve
No
Conductor cross section, input
(mm²)
1.5 - 16
Conductor cross section, output
(mm²)
1.5 - 16
Conductor cross section, input AWG
0 - 0
Conductor cross section, output AWG
0 - 0
Stock and logistics
Height
0.032 m
Width
0.062 m
Depth
0.252 m
Packaging
box
Weight
0.25 kg
HS code
85389099
Country of Origin
CZ
