Eaton
242513
Miniature circuit breaker (MCB)
Manufacturer part number: 242513
Serie: xPole
Type: PLSM-B10/3N-MW
EAN-code: 4015082425135
SKU Omnical: 2067156
Stock:
17 items.
Delivery time: 1-2 business days.
InStock
M76
$
203.48
per item
$
120.66
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

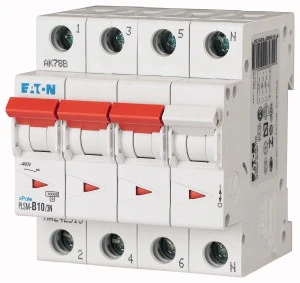

242513 Eaton Miniature circuit breaker (MCB)
Eaton Miniature circuit breaker (MCB) Installatie-automaat (MCB) PLSM, 10A, 3P+N, B-kar., 10ka
Datasheet
Rated current
(A)
10
Number of poles (total)
4
Concurrently switching neutral conductor
Yes
Release characteristic
B
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
(kA)
10
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
(kA)
10
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
(kA)
0
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
(kA)
0
Rated voltage
(V)
400
Additional equipment possible
Yes
Voltage type
AC
Current limiting class
3
Over voltage category
3
Pollution degree
2
Width in number of modular spacings
4
Built-in depth
(mm)
70.5
Degree of protection (IP)
IP20
Number of protected poles
3
Frequency
(Hz)
50 - 60
Suitable for flush-mounted installation
No
Rated insulation voltage Ui
(V)
440
Rated impulse withstand voltage Uimp
(kV)
4
Ambient temperature during operating
(°C)
-25 - 75
Connectable conductor cross section multi-wired
(mm²)
1 - 25
Connectable conductor cross section solid-core
(mm²)
1 - 25
Explosion-proof
No
Flush-mounted installation
No
Power loss
(W)
5.7
Stock and logistics
Height
0.075 m
Width
0.073 m
Depth
0.086 m
Packaging
box
Weight
0.423 kg
HS code
85362010
Country of Origin
RO
