Eaton
243061
Miniature circuit breaker (MCB)
Manufacturer part number: 243061
Serie: xPole
Type: PLS6-B16/4-MW
EAN-code: 4015082430610
SKU Omnical: 1047252
Stock: 0.
Estimated lead time: 6 days *
PreOrder
M76
$
180.29
per item
$
106.91
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

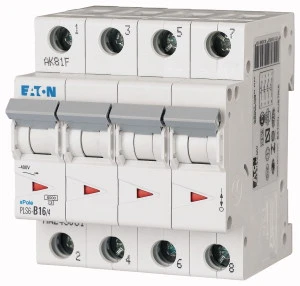

243061 Eaton Miniature circuit breaker (MCB)
Eaton Miniature circuit breaker (MCB) Installatie-automaat (MCB) PLS6, 16A, 4P, B-kar., 6ka
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Rated current
(A)
16
Number of poles (total)
4
Concurrently switching neutral conductor
Yes
Release characteristic
B
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
(kA)
6
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
(kA)
6
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
(kA)
0
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
(kA)
0
Rated voltage
(V)
400
Additional equipment possible
Yes
Voltage type
AC
Current limiting class
3
Over voltage category
3
Pollution degree
2
Width in number of modular spacings
4
Built-in depth
(mm)
70.5
Degree of protection (IP)
IP20
Number of protected poles
4
Frequency
(Hz)
50 - 60
Suitable for flush-mounted installation
No
Rated insulation voltage Ui
(V)
440
Rated impulse withstand voltage Uimp
(kV)
4
Ambient temperature during operating
(°C)
-25 - 75
Connectable conductor cross section multi-wired
(mm²)
1 - 25
Connectable conductor cross section solid-core
(mm²)
1 - 25
Explosion-proof
No
Flush-mounted installation
No
Power loss
(W)
7.5
Stock and logistics
Height
0.075 m
Width
0.073 m
Depth
0.086 m
Packaging
box
Weight
0.503 kg
HS code
85363010
Country of Origin
RO
