Eaton
243121

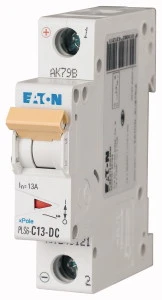

Miniature circuit breaker (MCB)
Manufacturer part number: 243121
Serie: xPole
Type: PLS6-C13-DC-MW
EAN-code: 4015082431211
SKU Omnical: 2067361
Stock: 0.
Estimated lead time: 37 days *
PreOrder
M76
€
70,03
per item
€
41,53
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
243121 Eaton Miniature circuit breaker (MCB)
Eaton Miniature circuit breaker (MCB) Installatie-automaat (MCB) PLS6, 13A, 1P, C-kar., DC, 6ka
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Rated current
(A)
13
Number of poles (total)
1
Concurrently switching neutral conductor
No
Release characteristic
C
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
(kA)
0
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
(kA)
0
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
(kA)
10
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
(kA)
10
Rated voltage
(V)
220
Additional equipment possible
Yes
Voltage type
DC
Current limiting class
3
Over voltage category
3
Pollution degree
2
Width in number of modular spacings
1
Built-in depth
(mm)
70.5
Degree of protection (IP)
IP20
Number of protected poles
1
Frequency
(Hz)
0 - 0
Suitable for flush-mounted installation
No
Rated insulation voltage Ui
(V)
440
Rated impulse withstand voltage Uimp
(kV)
4
Ambient temperature during operating
(°C)
-25 - 75
Connectable conductor cross section multi-wired
(mm²)
1 - 25
Connectable conductor cross section solid-core
(mm²)
1 - 25
Explosion-proof
No
Flush-mounted installation
No
Power loss
(W)
2.3
Stock and logistics
Height
0.075 m
Width
0.02 m
Depth
0.087 m
Packaging
box
Weight
0.124 kg
HS code
85362010
Country of Origin
RO
