Eaton 263171
Eaton

263171

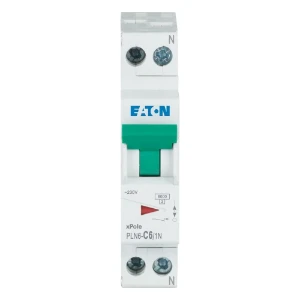

Miniature circuit breaker (MCB)
Manufacturer part number: 263171
Serie: xPole
Type: PLN6-C6/1N-MW

EAN-code: 4015082631710
SKU Omnical: 1047216

Stock: 156 items.

Delivery time: 1-2 business days.
InStock

M76
45,11 per item
26,75 per item
EUR | Excluding VAT

Quantity
items
Add to cart
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
paypal
visa
mastercard
wire-transfer
263171 Eaton Miniature circuit breaker (MCB)
Eaton Miniature circuit breaker (MCB) Installatie-automaat (MCB) PLN6, C-kar., 6A , 2P incl. N 18mm , 6 kA

Datasheet

Release characteristic
C
Number of poles (total)
2
Rated current (A)
6
Rated voltage (V)
230
Voltage type
AC
Current limiting class
3
Concurrently switching neutral conductor
Yes
Over voltage category
3
Pollution degree
2
Width in number of modular spacings
1
Built-in depth (mm)
70.5
Additional equipment possible
Yes
Degree of protection (IP)
IP20
Number of protected poles
1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V (kA)
6
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V (kA)
6
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V (kA)
0
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V (kA)
0
Frequency (Hz)
50 - 60
Suitable for flush-mounted installation
No
Rated insulation voltage Ui (V)
440
Rated impulse withstand voltage Uimp (kV)
4
Ambient temperature during operating (°C)
-25 - 75
Connectable conductor cross section multi-wired (mm²)
1 - 16
Connectable conductor cross section solid-core (mm²)
1 - 16
Explosion-proof
No
Flush-mounted installation
No
Power loss (W)
1.1

Stock and logistics

Height
0.077 m
Width
0.02 m
Depth
0.082 m

Packaging
item
Weight
0.115 kg
HS code
85363010
Country of Origin
RO
