Eaton
265535
Latching relay
Manufacturer part number: 265535
Serie: xPole
Type: Z-S24/S
EAN-code: 4015082655358
SKU Omnical: 2069409
Stock: 0.
Estimated lead time: 15 days *
PreOrder
M78
€
53,81
per item
€
39,23
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

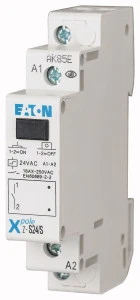

265535 Eaton Latching relay
Eaton Latching relay Impulsrelais Z-S24/S - 24 VAC / 12 VDC - 16A - 1M contact - 1TE
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Function
Mechanical switch
Mounting method
DIN rail
Width in number of modular spacings
1
Built-in depth
(mm)
60
Number of normally open contacts
1
Number of normally closed contacts
0
Number of change-over contacts
0
Control voltage 1
(V)
24 - 24
Type of control voltage 1
AC
Frequency control voltage 1
(Hz)
50 - 50
Control voltage 2
(V)
12 - 12
Type of control voltage 2
DC
Frequency control voltage 2
(Hz)
0 - 0
Rated switch current
(A)
16
Supply voltage
(V)
24 - 250
Voltage type of supply voltage
AC
Max. incandescent lamp load
(W)
1980
Max. load fluorescent lamp
(VA)
1020
Max. load fluorescent lamp (Duo circuit)
(VA)
1820
Max. load fluorescent lamp (parallel compensated)
(VA)
1105
Max. switching current (cos phi = 0.6)
(A)
24
Manual operation possible
Yes
Number of contacts as normally open contact
1
Number of contacts as normally closed contact
0
Number of contacts as change-over contact
0
Suitable for manual operation
Yes
Stock and logistics
Height
0.072 m
Width
0.02 m
Depth
0.082 m
Packaging
box
Weight
0.132 kg
HS code
85364900
Country of Origin
ES
