Eaton
266119
End switch
Manufacturer part number: 266119
Serie: LS Eindschakelaars
Type: LS-11S/RLA
EAN-code: 4015082661199
SKU Omnical: 1042963
Stock:
16 items.
Delivery time: 1-2 business days.
InStock
M85
$
61.45
per item
$
44.80
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

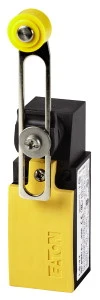

266119 Eaton End switch
Eaton End switch Eindschakelaars, 1M+1V, verstelbare zwenkrol
Datasheet
Type of control element
Adjustable rotary lever
Material housing
Plastic
Number of contacts as change-over contact
0
Number of contacts as normally open contact
1
Number of contacts as normally closed contact
1
Number of safety auxiliary contacts
1
Switching function
Quick-break switch
Width sensor
(mm)
31
Diameter sensor
(mm)
0
Height of sensor
(mm)
61
Length of sensor
(mm)
33.5
Rated operation current Ie at AC-15, 24 V
(A)
6
Rated operation current Ie at AC-15, 125 V
(A)
6
Rated operation current Ie at AC-15, 230 V
(A)
6
Rated operation current Ie at DC-13, 24 V
(A)
3
Rated operation current Ie at DC-13, 125 V
(A)
0.8
Rated operation current Ie at DC-13, 230 V
(A)
0.3
Output electronic
No
Forced opening
Yes
Type of interface
None
Type of interface for safety communication
None
Housing according to norm
Other
Construction type housing
Cuboid
Coating housing
Other
Alignment of the control element
Roller cam crossed
Type of electric connection
Cable entry metrical
With status indication
No
Suitable for safety functions
Yes
Explosion safety category for gas
None
Explosion safety category for dust
None
Ambient temperature during operating
(°C)
-25 - 70
Degree of protection (IP)
IP66/IP67
Switching function latching
No
Degree of protection (NEMA)
Other
Stock and logistics
Height
0.122 m
Width
0.033 m
Depth
0.036 m
Packaging
box
Weight
0.121 kg
HS code
85365080
Country of Origin
DE
