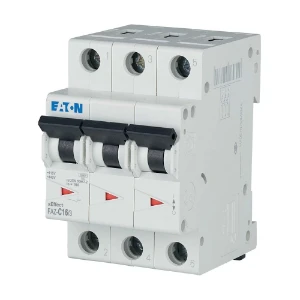

Eaton 278873
Eaton

278873

Miniature circuit breaker (MCB)
Manufacturer part number: 278873
Serie: xEffect
Type: FAZ-C16/3

EAN-code: 4015082788735
SKU Omnical: 1037254

Stock: 21 items.

Delivery time: 1-2 business days.
InStock

M88
145,23 per item
94,40 per item
EUR | Excluding VAT

Quantity
items
Add to cart
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
paypal
visa
mastercard
wire-transfer
278873 Eaton Miniature circuit breaker (MCB)
Eaton Miniature circuit breaker (MCB) Installatie-automaat (MCB) FAZ, 3P, 16A, C-curve, 15kA

Datasheet

Release characteristic
C
Number of poles (total)
3
Rated current (A)
16
Rated voltage (V)
400
Voltage type
AC
Current limiting class
3
Concurrently switching neutral conductor
No
Over voltage category
3
Pollution degree
2
Width in number of modular spacings
3
Built-in depth (mm)
70.5
Additional equipment possible
Yes
Degree of protection (IP)
IP20
Number of protected poles
3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V (kA)
10
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V (kA)
10
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V (kA)
15
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V (kA)
15
Frequency (Hz)
50 - 60
Suitable for flush-mounted installation
No
Rated insulation voltage Ui (V)
440
Rated impulse withstand voltage Uimp (kV)
4
Ambient temperature during operating (°C)
-25 - 75
Connectable conductor cross section multi-wired (mm²)
1 - 25
Connectable conductor cross section solid-core (mm²)
1 - 25
Explosion-proof
No
Flush-mounted installation
No
Power loss (W)
7.2

Stock and logistics

Height
0.075 m
Width
0.055 m
Depth
0.086 m

Packaging
item
Weight
0.351 kg
HS code
85363010
Country of Origin
RO
