Eaton
278958
Miniature circuit breaker (MCB)
Manufacturer part number: 278958
Serie: xEffect
Type: FAZ-C0,5/3N
EAN-code: 4015082789589
SKU Omnical: 2069878
Stock: 0.
Estimated lead time: 16 days *
PreOrder
M88
€
258,15
per item
€
167,80
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

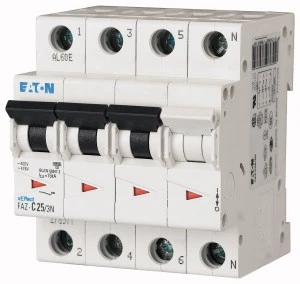

278958 Eaton Miniature circuit breaker (MCB)
Eaton Miniature circuit breaker (MCB) Installatie-automaat (MCB) FAZ, 3P+N, 0,5A, C-curve, 15kA
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Rated current
(A)
0.5
Number of poles (total)
4
Concurrently switching neutral conductor
Yes
Release characteristic
C
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
(kA)
10
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
(kA)
10
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
(kA)
15
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
(kA)
15
Rated voltage
(V)
400
Additional equipment possible
Yes
Voltage type
AC
Current limiting class
3
Over voltage category
3
Pollution degree
2
Width in number of modular spacings
4
Built-in depth
(mm)
70.5
Degree of protection (IP)
IP20
Number of protected poles
3
Frequency
(Hz)
50 - 60
Suitable for flush-mounted installation
No
Rated insulation voltage Ui
(V)
440
Rated impulse withstand voltage Uimp
(kV)
4
Ambient temperature during operating
(°C)
-25 - 75
Connectable conductor cross section multi-wired
(mm²)
1 - 25
Connectable conductor cross section solid-core
(mm²)
1 - 25
Explosion-proof
No
Flush-mounted installation
No
Power loss
(W)
5.3
Stock and logistics
Height
0.075 m
Width
0.073 m
Depth
0.086 m
Packaging
box
Weight
0.446 kg
HS code
85362010
Country of Origin
RO
