Eaton
291486
Phase busbar
Manufacturer part number: 291486
Serie: xPole
Type: EVG-16/3PHAS/12MODUL/HI
EAN-code: 4015082914868
SKU Omnical: 1036866
Stock: 0.
Estimated lead time: 9 days *
PreOrder
M78
$
28.17
per item
$
20.54
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

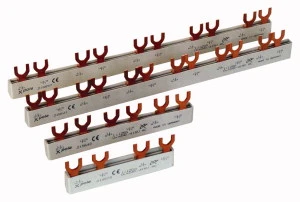

291486 Eaton Phase busbar
Eaton Phase busbar Kamrail EVG, Vork, 16mm2, 80A, 3P+hulpcont., 12TE
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of phases
3
Suitable for number of devices
4
Module width
(mm)
0
Cross section
(mm²)
16
Length
(mm)
33
Rated permanent current Iu
(A)
80
Type of electric connection
Fork
Insulated
Yes
Rated surge voltage
(kV)
4
Conditioned rated short-circuit current Iq
(kA)
25
Max. rated operation voltage Ue
(V)
415
Rated short-time withstand current lcw
(kA)
0
Suitable for devices with N-conductor
No
Suitable for devices with auxiliary switch
Yes
Number of poles
3
Number of modular spacings
12
Width in number of modular spacings
12
Colour
Other
Can be cut to size
No
Stock and logistics
Height
0.012 m
Width
0.247 m
Depth
0.035 m
Packaging
box
Weight
0.141 kg
HS code
85369095
Country of Origin
DE
