Eaton
6098954
Switch disconnector
Manufacturer part number: 6098954
Serie: Dumeco
Type: DDC-1000/2-SK
EAN-code: 8711426107984
SKU Omnical: 2261631
Stock: 0.
Estimated lead time: 39 days *
PreOrder
M86
€
1.957,84
per item
€
1.748,35
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

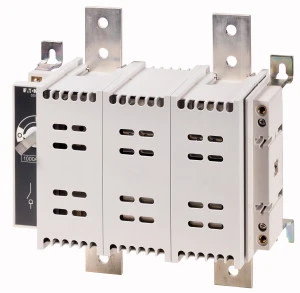

6098954 Eaton Switch disconnector
Eaton Switch disconnector Lastscheider DUMECO DC 1000A 2P, zonder as en draaigreep
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles
2
Rated permanent current Iu
(A)
1000
Version as main switch
Yes
Version as maintenance-/service switch
Yes
Version as safety switch
No
Version as emergency stop installation
No
Width
(mm)
230
Device construction
Built-in device fixed built-in technique
Rated operation power at AC-23, 400 V
(kW)
0
Number of auxiliary contacts as normally closed contact
1
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as change-over contact
0
Motor drive optional
No
Motor drive integrated
No
Voltage release optional
No
Conditioned rated short-circuit current Iq
(kA)
0
Suitable for floor mounting
Yes
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
No
Suitable for intermediate mounting
No
Type of control element
Other
Interlockable
No
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP), front side
IP20
Height
(mm)
160
Depth
(mm)
345
Version as reversing switch
No
Rated operating voltage
(V)
1000 - 1000
Rated permanent current at AC-21, 400 V
(A)
0
Rated operation power at AC-3, 400 V
(kW)
0
Rated short-time withstand current lcw
(kA)
25
Switching power at 400 V
(kW)
0
Colour control element
Other
Number of switches
1
Rated permanent current at AC-23, 400 V
(A)
0
Degree of protection (NEMA)
Other
With pre-assembled cabling
No
Stock and logistics
Height
0.28 m
Width
0.354 m
Depth
0.354 m
Packaging
box
Weight
14 kg
HS code
85365080
Country of Origin
NL
