Eaton
6099273
Switch disconnector
Manufacturer part number: 6099273
Serie: Dumeco
Type: DMV-250/4/M4/P-G
EAN-code: 8711426848788
SKU Omnical: 2261638
Stock: 0.
Estimated lead time: 39 days *
PreOrder
M86
€
409,01
per item
€
365,25
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

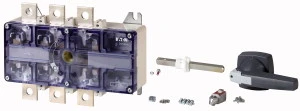

6099273 Eaton Switch disconnector
Eaton Switch disconnector Lastscheider DUMECO 250A 4P, M8, draaigreep K3KDG/P grijs, as=400mm
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles
4
Rated permanent current Iu
(A)
250
Version as main switch
Yes
Version as maintenance-/service switch
No
Version as safety switch
No
Version as emergency stop installation
No
Width
(mm)
205
Device construction
Built-in device fixed built-in technique
Max. rated operation voltage Ue AC
(V)
690
Rated operation power at AC-23, 400 V
(kW)
250
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
Motor drive optional
No
Motor drive integrated
No
Voltage release optional
No
Conditioned rated short-circuit current Iq
(kA)
50
Suitable for floor mounting
Yes
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
No
Suitable for intermediate mounting
Yes
Type of control element
Short thumb-grip
Interlockable
Yes
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP), front side
IP65
Height
(mm)
135
Depth
(mm)
63
Version as reversing switch
No
Rated operating voltage
(V)
690 - 690
Rated permanent current at AC-21, 400 V
(A)
250
Rated operation power at AC-3, 400 V
(kW)
0
Rated short-time withstand current lcw
(kA)
12
Switching power at 400 V
(kW)
250
Colour control element
Grey
Number of switches
1
Rated permanent current at AC-23, 400 V
(A)
250
Degree of protection (NEMA)
12
With pre-assembled cabling
No
Stock and logistics
Height
0.163 m
Width
0.183 m
Depth
0.393 m
Packaging
box
Weight
1.6 kg
HS code
85365080
Country of Origin
NL
