Eaton
6907992
Earth leakage circuit breaker
Manufacturer part number: 6907992
Serie: Systeem 55
Type: PKN6-20-1N-B-03-A-PV-FL
EAN-code: 9010653026259
SKU Omnical: 4142209
Stock: 0.
Estimated lead time: 8 days *
PreOrder
M71
€
233,89
per item
€
101,98
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

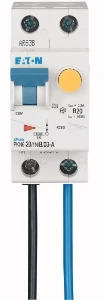

6907992 Eaton Earth leakage circuit breaker
Eaton Earth leakage circuit breaker Aardlek.aut 6kA 1P+N 20A B-kar 300mA PV FLEX S55 PV basis
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles (total)
2
Number of protected poles
1
Rated current
(A)
20
Rated fault current
(A)
0.3
Release characteristic
B
Concurrently switching neutral conductor
Yes
Leakage current type
A
Rated short-circuit breaking capacity according to IEC 60947-2
(kA)
0
Rated voltage
(V)
400
Current limiting class
3
Frequency
50 Hz
Over voltage category
3
Pollution degree
2
Width in number of modular spacings
2
Built-in depth
(mm)
60
Degree of protection (IP)
IP20
Surge current capacity
(kA)
0.25
Voltage type
AC
Anti-nuisance tripping version
No
Rated insulation voltage Ui
(V)
440
Rated impulse withstand voltage Uimp
(kV)
4
Rated short-circuit breaking capacity according to EN 61009
(kA)
6
Rated short-circuit breaking capacity Icn according to EN 61009-1
(kA)
6
Disconnection characteristic
Other
With interlocking device
No
Ambient temperature during operating
(°C)
-25 - 40
Connectable conductor cross section solid-core
(mm²)
1 - 25
Connectable conductor cross section multi-wired
(mm²)
1 - 25
Flush-mounted installation
No
Power loss
(W)
0
Stock and logistics
Height
0.146 m
Width
0.074 m
Depth
0.084 m
Packaging
box
Weight
0.252 kg
HS code
85381000
Country of Origin
RO
