Wago
745-804
Printed circuit board terminal
Manufacturer part number: 745-804
Serie: Series 745
Type: 745-804
EAN-code: 4044918300230
SKU Omnical: 1660234
Stock: 0.
Estimated lead time: 9 days *
PreOrder
XNK
$
80.53
per 100 items
$
65.55
per 100 items
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
745-804 Wago Printed circuit board terminal
Wago Printed circuit board terminal Rijgbare printklem 4 mm² Rastermaat 5 mm blauw
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet

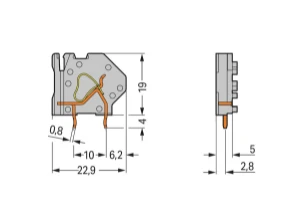

Height
(mm)
19
Number of electrical connections
1
Number of levels
1
Modular spacing connections
(mm)
5
Angle PCB/conductor connection
45°/135° (downwards inclined)
Rated current In
(A)
32
Rated voltage
(V)
320
Rated surge voltage
(kV)
4
Over voltage category
III
Pollution degree
2
Connection type conductor
Spring clamp connection
Connectable conductor cross section solid-core
(mm²)
0.08 - 4
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.25 - 2.5
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.08 - 4
Connectable conductor cross section multi-wired
(mm²)
0.08 - 4
Connection type PCB
Soldering connection
Material connection surface
Tin
Length pin
(mm)
4
Material insulation body
Thermoplastic
Colour housing
Blue
Inflammability class of insulation material according to with UL94
V0
Operating temperature
(°C)
-60 - 105
Type of PCB fastening
Connecting contact
Type of fastening
Solder
Packaging type
Other
Type of banding
None
Stock and logistics
Height
0.096 m
Width
0.13 m
Depth
0.191 m
Packaging
box
Weight
0.462 kg
HS code
85369010
Country of Origin
PL
