Eaton
BB1P100M3
Phase busbar
Manufacturer part number: BB1P100M3
Serie: Bussmann Low Voltage N.American
Type: ngl-phase 1000v DC BB, 100A, 3 pins
EAN-code: 0051712365970
SKU Omnical: 2262019
Stock: 0.
Estimated lead time: 59 days *
PreOrder
XDV
€
12,87
per item
€
9,38
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

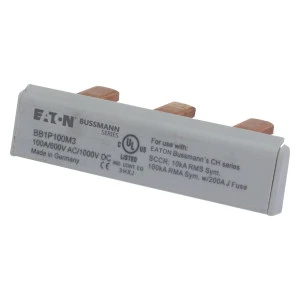

BB1P100M3 Eaton Phase busbar
Eaton Phase busbar Railsysteem, laagspanning, 100 A, AC 600 V, DC 1000 V, 15 x 16 x 52 mm
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of phases
1
Suitable for number of devices
3
Module width
(mm)
17.8
Cross section
(mm²)
25
Length
(mm)
52
Rated permanent current Iu
(A)
100
Type of electric connection
Fork
Insulated
Yes
Conditioned rated short-circuit current Iq
(kA)
10
Max. rated operation voltage Ue
(V)
600
Rated short-time withstand current lcw
(kA)
10
Suitable for devices with N-conductor
No
Suitable for devices with auxiliary switch
No
Number of poles
3
Number of modular spacings
3
Stock and logistics
Height
0.018 m
Width
0.017 m
Depth
0.054 m
Packaging
box
Weight
0.017 kg
HS code
85389099
Country of Origin
DE
