Epic
70317100
Contact insert for rectangular connectors
Manufacturer part number: 70317100
Serie: EPIC H-B
Type: TB-H-BE 24 BRE KLEMMADAPTER
EAN-code: 4044773546071
SKU Omnical: 2387793
Stock: 0.
Estimated lead time: 8 days *
PreOrder
YLC
€
4.282,56
per 100 items
€
2.907,86
per 100 items
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

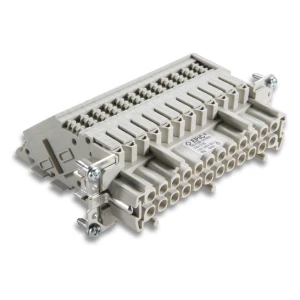

70317100 Epic Contact insert for rectangular connectors
Epic Contact insert for rectangular connectors TB-H-BE 24 BRE TERMINAL BLOCK ADAPTER
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles
24
Rated current In
(A)
16
Contact type
Bus
Contact insert without contacts
No
Diameter plug-in contact
(mm)
2.5
Material connector insert
Thermoplastic
Ambient temperature
(°C)
-40 - 125
Rated voltage
(V)
500
Rated surge voltage
(kV)
6
Over voltage category
III
Pollution degree
3
Type of electric connection
Screw connection
With wire protection
Yes
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.5 - 4
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.5 - 4
Connectable conductor cross section solid-core
(mm²)
0.5 - 4
Connectable conductor cross section multi-wired
(mm²)
0.5 - 4
Material of contact surface
Silver
Material contact
Brass
Inflammability class of insulation material according to with UL94
V0
With protective conductor
Yes
Stock and logistics
Packaging
box
Weight
276 g
HS code
85366990
Country of Origin
DE
