ETI
433021107
Miniature circuit breaker (MCB)
Manufacturer part number: 433021107
Serie:
Type: 1p
EAN-code: 3838895919506
SKU Omnical: 4233688
Stock: 0.
Estimated lead time: 5 days *
PreOrder
SSL Connection
WorldWide Shipping

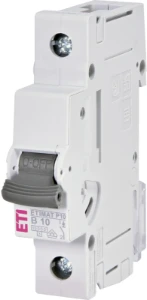

433021107 ETI Miniature circuit breaker (MCB)
ETI Miniature circuit breaker (MCB) ETIMAT P10 B 10A 1 module 1p 10kA 1901008
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Rated current
(A)
10
Number of poles (total)
1
Concurrently switching neutral conductor
No
Release characteristic
B
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
(kA)
10
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
(kA)
10
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
(kA)
10
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
(kA)
10
Rated voltage
(V)
415
Additional equipment possible
Yes
Voltage type
AC/DC
Current limiting class
3
Over voltage category
3
Pollution degree
2
Width in number of modular spacings
1
Built-in depth
(mm)
69
Degree of protection (IP)
IP20
Number of protected poles
1
Frequency
(Hz)
50 - 60
Rated insulation voltage Ui
(V)
500
Rated impulse withstand voltage Uimp
(kV)
6
Ambient temperature during operating
(°C)
-40 - 70
Connectable conductor cross section multi-wired
(mm²)
1 - 25
Connectable conductor cross section solid-core
(mm²)
1 - 25
Explosion-proof
No
Flush-mounted installation
No
Stock and logistics
Height
7 cm
Width
1.8 cm
Depth
8.8 cm
Packaging
box
Weight
0.134 kg
HS code
85362010
