ETI
433022161
Miniature circuit breaker (MCB)
Manufacturer part number: 433022161
Serie:
Type: 3p
EAN-code: 3838895924920
SKU Omnical: 4233775
Stock:
4 items.
Delivery time: 1-2 business days.
InStock
HE0
€
115,29
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

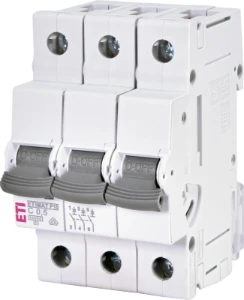

433022161 ETI Miniature circuit breaker (MCB)
ETI Miniature circuit breaker (MCB) ETIMAT P10 C 0,5A 3 module 3p 10kA 1901321
Datasheet
Rated current
(A)
0.5
Number of poles (total)
3
Concurrently switching neutral conductor
No
Release characteristic
C
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
(kA)
10
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
(kA)
10
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
(kA)
10
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
(kA)
10
Rated voltage
(V)
415
Additional equipment possible
Yes
Voltage type
AC/DC
Current limiting class
3
Over voltage category
3
Pollution degree
2
Width in number of modular spacings
3
Built-in depth
(mm)
69
Degree of protection (IP)
IP20
Number of protected poles
3
Frequency
(Hz)
50 - 60
Rated insulation voltage Ui
(V)
500
Rated impulse withstand voltage Uimp
(kV)
6
Ambient temperature during operating
(°C)
-40 - 70
Connectable conductor cross section multi-wired
(mm²)
1 - 25
Connectable conductor cross section solid-core
(mm²)
1 - 25
Explosion-proof
No
Flush-mounted installation
No
Stock and logistics
Height
7 cm
Width
5.3 cm
Depth
8.8 cm
Packaging
box
Weight
0.387 kg
HS code
85362010
