Eupen
P628066
Power cable >= 1 kV, for permanent installation
Manufacturer part number: P628066
Serie:
Type: Z1G-YMZ1KAS 3X95 SM 1 KV
EAN-code: 5413260729379
SKU Omnical: 4188642
Stock: 0.
Estimated lead time: 5 days *
PreOrder
YIG
$
23,404.50
per 100 meter
$
16,383.15
per 100 meter
CAD | Excluding VAT
Quantity
x 1 meter
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

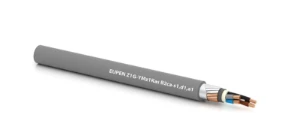

P628066 Eupen Power cable >= 1 kV, for permanent installation
Eupen Power cable >= 1 kV, for permanent installation Z1G-YMZ1KAS 3X95 SM 1KV B2ca-s1,d1,a1 UNGL GRIJS
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Conductor material
Copper
Conductor surface
Bare
Nominal cross section conductor
(mm²)
95
Conductor category
Class 2 = stranded
Conductor resistance at 20 °C
(Ohm/km)
0.193
Shape of conductor
Sector-shaped
Number of cores
3
Material core insulation
Polyolefin
Specification core insulation
Crosslinked polyethylene (XLPE)
Core identification according to HD 308 S2
Yes
Laminated sheath
No
Fibre optic elements
No
With protective conductor
No
Inner semi-conducting layer
No
Outer semi-conducting layer
No
Screen
No
Drain wire
No
Lead sheath
No
Number of pilot/reduced conductors
0
Nominal cross section pilot/reduced conductor
(mm²)
0
Concentric conductor
None
Nominal cross section concentric conductor
(mm²)
50
Armouring
Yes
Material outer sheath
Polyolefin
Specification material outer sheath
Other
Colour outer sheath
Grey
Cable geometry
Round
Conductive coating
No
Longitudinal water blocking conductors
No
Longitudinal water blocking screen
No
B2ca
s1
d1
a1
Flame retardant
Other
Insulation integrity according to IEC 60331
No
Insulation integrity
None
Circuit integrity
None
Oil resistant (according to IEC 60811-404)
Yes
Outer diameter approx.
(mm)
36.1
Min. permitted bending radius, stationary application/permanent installation
(mm)
288.8
Weight
(kg/km)
3953
Max. conductor temperature
(°C)
90
Permitted cable outer temperature during assembling/handling
(°C)
0 - 70
Permitted cable outer temperature after assembling without vibration
(°C)
-25 - 80
Nominal voltage U0
(kV)
0.6
Nominal voltage U
(kV)
1
Suitable as installation cable
Yes
Certified for shipboard application
No
Suitable as medium-voltage cable
No
Suitable as high-voltage cable
No
Certified as airport lighting cable
No
Diameter conductor
(mm)
12.5
Protective barrier
Other
Armouring/reinforcement
Wire
Material reinforcement
Steel
Radial water blocking cable
No
With rodent protection
No
Yes
No
No
No
Yes
No
Yes
None
None
None
None
No
Oil resistant according to IEC 60811-404
Yes
19
(mm)
2.58
Stock and logistics
Packaging
Ring
Weight
3.953 kg
HS code
85444991
Country of Origin
BE
