Eupen
P700066
Power cable >= 1 kV, for permanent installation
Manufacturer part number: P700066
Serie:
Type: VG-YMVKAS 4X 50 DCA-S2
EAN-code: 5413260730009
SKU Omnical: 1236423
Stock: 0.
Estimated lead time: 5 days *
PreOrder
YIG
$
15,739.06
per 100 meter
$
11,017.34
per 100 meter
CAD | Excluding VAT
Quantity
x 1 meter
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

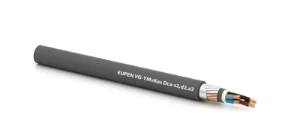

P700066 Eupen Power cable >= 1 kV, for permanent installation
Eupen Power cable >= 1 kV, for permanent installation VG-YMVKAS 4X50 SM 1KV Dca-s2,d2,a3 UNGL R7012 GRIJS
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Conductor material
Copper
Conductor surface
Bare
Nominal cross section conductor
(mm²)
50
Conductor category
Class 2 = stranded
Conductor resistance at 20 °C
(Ohm/km)
0.387
Shape of conductor
Sector-shaped
Number of cores
4
Material core insulation
Polyolefin
Specification core insulation
Crosslinked polyethylene (XLPE)
Core identification according to HD 308 S2
Yes
Laminated sheath
No
Fibre optic elements
No
Inner semi-conducting layer
No
Outer semi-conducting layer
No
Screen
No
Drain wire
No
Lead sheath
No
Number of pilot/reduced conductors
0
Nominal cross section pilot/reduced conductor
(mm²)
0
Concentric conductor
None
Nominal cross section concentric conductor
(mm²)
25
Armouring
Yes
Material outer sheath
Polyvinyl chloride (PVC)
Specification material outer sheath
Other
Colour outer sheath
Grey
Cable geometry
Round
Conductive coating
No
Longitudinal water blocking conductors
No
Longitudinal water blocking screen
No
Dca
s2
d2
a3
Halogen free according to EN 60754-1/2
No
Halogen free according to IEC 60754-2
No
Flame retardant
Other
Low smoke (according to EN 61034-2)
No
Low smoke according to IEC 61034-2
No
Insulation integrity according to IEC 60331
No
Insulation integrity
None
Circuit integrity
None
Outer diameter approx.
(mm)
32.1
Min. permitted bending radius, stationary application/permanent installation
(mm)
256.8
Weight
(kg/km)
2848
Max. conductor temperature
(°C)
90
Permitted cable outer temperature during assembling/handling
(°C)
-5 - 70
Permitted cable outer temperature after assembling without vibration
(°C)
-25 - 80
Nominal voltage U0
(kV)
0.6
Nominal voltage U
(kV)
1
Suitable as installation cable
Yes
Certified for shipboard application
No
Suitable as medium-voltage cable
No
Suitable as high-voltage cable
No
Certified as airport lighting cable
No
Diameter conductor
(mm)
8.8
Protective barrier
Polyvinyl chloride (PVC)
Armouring/reinforcement
Wire
Material reinforcement
Steel
Radial water blocking cable
No
Suitable for underground installation
Yes
With rodent protection
No
Yes
No
No
No
Yes
No
No
None
None
None
None
No
Oil resistant according to IEC 60811-404
Yes
UV resistant
Yes
19
(mm)
1.83
Stock and logistics
Packaging
Ring
Weight
2.848 kg
HS code
85444991
Country of Origin
BE
