018.31.100.WI

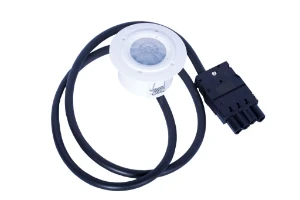

Movement sensor / presence detector complete
Manufacturer part number: 018.31.100.WI
Serie: com
Type: 018.31.100.WI
EAN-code: 8718531540019
SKU Omnical: 2075426
Stock: 0.
Estimated lead time: 5 days *
PreOrder
F11
€
149,01
per item
€
108,63
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
018.31.100.WI Finder Movement sensor / presence detector complete
Finder Movement sensor / presence detector complete FIN 18.31+ 4POL WIELAND 1M
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Model
Movement sensor
Constant light control
No
HVAC-control
No
Forced switch off
No
Animal zone
No
Creep-under protection
Yes
Networkable
No
Optimum mounting height
(m)
2.8
Staircase monitoring
Yes
Bridging switch
No
Max. transmission range sideways
(m)
4
Max. transmission range frontally
(m)
8
Diameter detection range on floor
(m)
8
Suitable for wireless transmission
No
Remote operation
No
Response value sensitivity adjustable
Yes
Response value luminosity adjustable
Yes
With signal unit
No
Teach-function for response value luminosity
No
Dim function with dimmer basic element
No
Mounting method
Flush mounted (plaster)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9010
Transparent
No
Degree of protection (IP)
IP40
Voltage type
AC
Nominal voltage
(V)
230
Min. switch-on time
(s)
10
Max. duty cycle
(min)
12
Detection angle horizontal
(°)
110 - 110
Response value luminosity
(lx)
1 - 350
Max. switching power
(W)
1000
Temperature
(°C)
-10 - 50
Max. starting current
(A)
100
Substation input
No
Control current
(mA)
11
Frequency
(Hz)
50 - 60
With alarm function
No
Height
(mm)
40.7
Sensor type
Passive infrared
With DALI interface
No
With remote control
No
Switch-off delay
(s)
720
Pivoting range sensor, horizontal
(°)
0 - 0
Pivoting range sensor, vertical
(°)
0 - 0
Number of switching zones
1
Forced switch on
No
Scan angle
(°)
360
Suitable for ceiling mounting
Yes
Suitable for wall mounting
No
Connection type
Screwed terminal
Anti-bacterial treatment
No
Diameter
(mm)
80
Built-in depth
(mm)
36.5
Built-in diameter
(mm)
70
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Max. switching power LED
(W)
300
Nominal voltage
(V)
120 - 230
Suitable for wall mounting
No
No
No
With connection cable
Yes
Length of connection cable
(mm)
1000
Stock and logistics
Height
700 mm
Width
300 mm
Depth
300 mm
Packaging
box
Weight
0.355 kg
HS code
85369010
Country of Origin
NL
