22.24.8.024.4000
Installation relay
Manufacturer part number: 22.24.8.024.4000
Serie: 22
Type: 22.24.8.024.4000
EAN-code: 8012823118956
SKU Omnical: 2075615
Stock: 0.
Estimated lead time: 7 days *
PreOrder
F13
€
28,91
per item
€
21,08
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

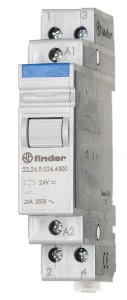

22.24.8.024.4000 Finder Installation relay
Finder Installation relay FIN RELAIS 2V 20A 24VAC
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Function
Mechanical
Mounting method
DIN rail
Width in number of modular spacings
1
Built-in depth
(mm)
58.4
Number of normally open contacts
0
Number of normally closed contacts
2
Number of change-over contacts
0
Control voltage 1
(V)
24 - 24
Type of control voltage 1
AC
Frequency control voltage 1
(Hz)
50 - 60
Rated current
(A)
20
Supply voltage
(V)
24 - 24
Voltage type of supply voltage
AC
Max. incandescent lamp load
(W)
1000
Max. load fluorescent lamp
(VA)
400
Max. load fluorescent lamp (Duo circuit)
(VA)
400
Max. load fluorescent lamp (parallel compensated)
(VA)
360
Max. switching current (cos phi = 0.6)
(A)
12
Number of contacts as normally open contact
0
Number of contacts as normally closed contact
2
Number of contacts as change-over contact
0
Stock and logistics
Height
67 mm
Width
23 mm
Depth
92 mm
Packaging
box
Weight
0.115 kg
HS code
85364900
Country of Origin
IT
