7P.03.9.000.1012

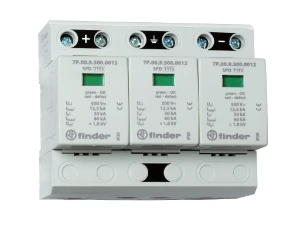

Surge protection device for power supply systems
Manufacturer part number: 7P.03.9.000.1012
Serie: 7P
Type: 7P.03.9.000.1012
EAN-code: 8012823374635
SKU Omnical: 2492024
Stock: 0.
Estimated lead time: 7 days *
PreOrder
YOP
€
498,65
per item
€
363,52
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
7P.03.9.000.1012 Finder Surge protection device for power supply systems
Finder Surge protection device for power supply systems FIN SPD TYPE 1+2, 3FASE/3VAR.FOTOVOLT.
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
System configuration
DC
Type of poles
3
Nominal discharge surge current (8/20)
(kA)
30
Nominal voltage DC
(V)
1000
Max. continuous voltage DC
(V)
500
Max. PV-voltage
(V)
1000
Voltage protection level
(kV)
3.6
Voltage protection level L-N
(kV)
3.6
Voltage protection level N-PE
(kV)
3.6
Mounting method
DIN rail (top hat rail) 35 mm
Construction size
6 modular spacing
Max. conductor cross section solid (solid, stranded)
(mm²)
50
Max. conductor cross section flexible (fine-strand)
(mm²)
35
With remote signalling contact
Yes
Integrated backup fuse
No
Signalling at the device
Optic
Category type 2
Yes
Short-circuit-proof
No
Degree of protection (IP)
IP20
Max. discharge surge current (8/20)
(kA)
60
Stock and logistics
Height
80 mm
Width
120 mm
Depth
120 mm
Packaging
box
Weight
1.045 kg
HS code
85363030
Country of Origin
CZ
