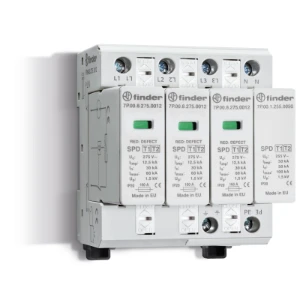

7P.04.8.275.1012
Surge protection device for power supply systems
Manufacturer part number: 7P.04.8.275.1012
Serie: 7P
Type: 7P.04.8.275.1012
EAN-code: 8012823437910
SKU Omnical: 4134649
Stock: 0.
Estimated lead time: 7 days *
PreOrder
YOP
€
580,15
per item
€
422,93
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
7P.04.8.275.1012 Finder Surge protection device for power supply systems
Finder Surge protection device for power supply systems FIN SPD TYPE 1+2, 3FASE/3VAR.+VONK
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Nominal discharge surge current (8/20)
(kA)
30
Nominal voltage AC
(V)
230
Max. continuous voltage AC
(V)
275
Voltage protection level
(kV)
1.5
Voltage protection level L-N
(kV)
1.5
Voltage protection level N-PE
(kV)
1.5
Mounting method
DIN rail (top hat rail) 35 mm
Construction size
4 modular spacing
Max. conductor cross section solid (solid, stranded)
(mm²)
35
Max. conductor cross section flexible (fine-strand)
(mm²)
25
With remote signalling contact
Yes
Integrated backup fuse
No
Signalling at the device
Optic
Category type 2
Yes
Degree of protection (IP)
IP20
System configuration DC
No
System configuration IT
No
System configuration TN
No
System configuration TN-C
No
System configuration TN-C-S
No
System configuration TN-S
Yes
System configuration TT
Yes
System configuration other
No
Number of conductors (without earthing)
4
Short-circuit breaking capacity (Isccr)
(kA)
50
Max. discharge surge current (8/20)
(kA)
60
Max. overcurrent protection device, parallel connection (fuse)
(A)
160
Leakage-current free
Yes
Stock and logistics
Height
80 mm
Width
160 mm
Depth
120 mm
Packaging
box
Weight
1.141 kg
HS code
85363030
Country of Origin
CZ
