88.92.0.240.0001
Timer relay
Manufacturer part number: 88.92.0.240.0001
Serie: 88
Type: 88.92.0.240.0001
EAN-code: 8012823392981
SKU Omnical: 2492074
Stock: 0.
Estimated lead time: 7 days *
PreOrder
YOP
€
119,34
per item
€
87,00
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

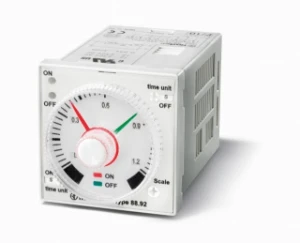

88.92.0.240.0001 Finder Timer relay
Finder Timer relay FIN TIJDRELAIS 2W 8A, 12...240VUC
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Type of electric connection
Plug-in connection
Function delay-on energization
Yes
Function delay on de-energization
No
Function floating contact on energization
Yes
Function floating contact on de-energization
No
Width
(mm)
48
Function star-delta
No
Function pulse shaping
No
Function flashing, starting with pause, fixed time
Yes
Function flashing, starting with pulse, fixed time
Yes
Clock function, starting with pause, variable
No
Clock function, starting with pulse, variable
No
With plug-in socket
Yes
Remote operation possible
No
Suitable as remote control
No
Pluggable on auxiliary contact block
No
Rated control supply voltage at AC 50 Hz
(V)
12 - 240
Rated control supply voltage at AC 60 Hz
(V)
12 - 240
Rated control supply voltage at DC
(V)
24 - 48
Voltage type for actuating
AC/DC
Time range
(s)
0 - 5
Number of outputs, undelayed, normally closed contact
0
Number of outputs, undelayed, normally open contact
0
Number of outputs, undelayed, change-over contact
0
Number of outputs, delayed, normally closed contact
0
Number of outputs, delayed, normally open contact
0
Number of outputs, delayed, change-over contact
2
Outputs, reversible delayed/undelayed
No
With semiconductor output
No
Height
(mm)
79.5
Depth
(mm)
48
Nominal current
(A)
8
Suitable for DIN rail (top hat rail) mounting
No
Suitable for front mounting
No
Complete with socket
No
Suitable for front mounting
No
Operating voltage at AC 50 Hz
(V)
10.8 - 264.5
Operating voltage at AC 60 Hz
(V)
10.8 - 264.5
Operating voltage at DC
(V)
10.8 - 264.5
Voltage type (operating voltage)
AC/DC
Max. starting current
(A)
15
Degree of protection (IP)
IP40
Stock and logistics
Height
65 mm
Width
55 mm
Depth
100 mm
Packaging
box
Weight
0.139 kg
HS code
85364900
Country of Origin
IT
