Full catalog
Categorized products only
Fluke
2583583
Multimeter
Manufacturer part number: 2583583
Serie: Multimeter
Type: 115
EAN-code: 0095969344814
SKU Omnical: 1037572
Stock:
9 items.
Delivery time: 1-2 business days.
InStock
CBO
€
326,71
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

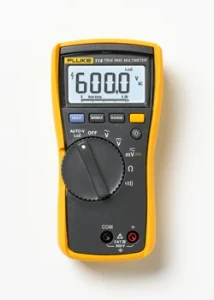

2583583 Fluke Multimeter
Fluke Multimeter Compacte RMS multimeter tot 600V AC/DC - 10A AC/DC
Datasheet
Indication
Digital
Analogue bar graph display
Yes
Multiple display
No
Measuring range selection
Manual/automatic
Max. voltage measuring range, AC
(V)
600
Lowest resolution, AC voltage
0.1 mV
Max. voltage measuring range, DC
(V)
600
Lowest resolution, DC voltage
0.1 mV
Max. current measuring range, AC
(A)
10
Lowest resolution, AC current
Other
Max. current measuring range, DC
(A)
10
Lowest resolution, DC current
1000 µA
Max. resistance measuring range
(M Ohm)
40
Lowest resolution, resistance
0.1 Ohm
Temperature measurement
No
Resistance test/diode test
Yes
Capacitance measurement
Yes
Frequency measurement
Yes
With decibel measurement (dB)
No
Relative value measurement
No
Inductance measurement
No
With conductivity measurement
No
Data hold
Yes
Max. value storage
Yes
Min. value storage
Yes
Peak value memory
No
True RMS measurement
Yes
Duty cycle measurements
No
Measured value memory
No
Interface
No
Measuring circuit category
CAT III
Analogue bar graph display analogue/logarithmical
Yes
Milliohm measurement with 4 wire technique (Kelvin connection)
No
Temperature measurement RTD
No
Temperature measurement TC
No
Max. capacitance measuring range
(µF)
9999
Lowest resolution, capacitance
0.001 µF
Max. frequency measuring range
(kHz)
50
Lowest resolution, frequency
0.01 Hz
Nominal test voltage 10 V
No
Nominal test voltage 50 V
No
Nominal test voltage 100 V
No
Nominal test voltage 250 V
No
Nominal test voltage 500 V
No
Nominal test voltage 1000 V
No
Cable length measurement
No
Cable symmetry testing for two wire connections a-b-E
No
Power and energy measurement
No
Harmonics analysis/power quality
No
Continuity test
Yes
Rotational speed measuring
No
Bluetooth interface
No
IR interface
No
Automatic circuit breaker
No
Max. voltage measuring circuit category
(V)
600
Explosion-tested version
No
With display backlight
Yes
Temperature measurement
No
Degree of protection (IP)
IP42
Scaling bar graph lineair
Yes
Scaling bar graph logarithmic
No
No
Current supply
Battery
Stock and logistics
Height
0.1 m
Width
0.16 m
Depth
0.275 m
Packaging
Package
Weight
0.74 kg
HS code
90303200
Country of Origin
CN
