Fluke
3977194
Process calibrator
Manufacturer part number: 3977194
Serie: Proceskalibrator
Type: 789
EAN-code: 95969590396
SKU Omnical: 1037622
Stock: 0.
Estimated lead time: 6 days *
PreOrder
CBR
€
2.146,44
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

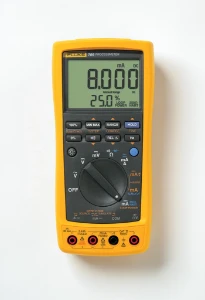

3977194 Fluke Process calibrator
Fluke Process calibrator Process Meter met 24V-lusvoeding
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Indication
Digital
Voltage output 0 mV ... 100 mV
No
Voltage output 0 V ... 10 V
No
Max. voltage measuring range, DC
(V)
1000
Output current 0 mA ... 24 mA
Yes
Max. current measuring range, DC
(A)
1
Thermal element type J
No
Thermal element type K
No
Thermal element type T
No
Thermal element type E
No
Thermal element type R
No
Thermal element type S
No
Thermal element type B
No
Thermal element type L
No
Thermal element type U
No
Thermal element type N
No
Thermal element RTD
No
Pressure measurement
No
Measured value memory
No
Interface
Yes
Number of channels
1
Analogue bar graph display
No
Multiple display
Yes
Voltage output 0 V ... +/- 300 mV
No
Voltage output 0 V ... 3 V
No
Voltage output 0 V ... 15 V
No
Lowest resolution current output
0.001 mA
Power sink (transmitter simulator) 0 mA ... 24 mA
Yes
Lowest resolution power sink
0.001 mA
Resistor output
No
Thermal element RTD PT100
No
Thermal element RTD PT1000
No
Thermal element RTD Ni100
No
Thermal element RTD Ni1000
No
Frequency and pulse groups encoding
No
Ramp and stair function
Yes
Simultaneous measuring and encoding
No
Lowest resolution, AC voltage
0.001 mV
Lowest resolution, DC voltage
0.001 mV
Max. current measuring range, AC
(A)
1
Lowest resolution, AC current
1 µA
Max. resistance measuring range
(Ohm)
40000000
Lowest resolution, resistance
0.1 Ohm
True RMS measurement
Yes
Calibration software
No
Stock and logistics
Height
0.088 m
Width
0.159 m
Depth
0.294 m
Packaging
box
Weight
0.96 kg
HS code
90303200
