Fosnova
223700321219

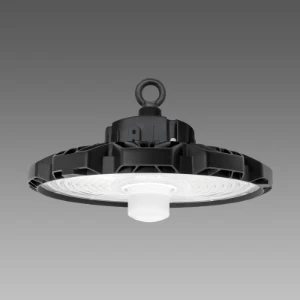

High bay luminaire
Manufacturer part number: 223700321219
Serie: LUCENTE
Type: 223700321219 200W/4K
EAN-code: 8016535145415
SKU Omnical: 4166245
Stock: 0.
Estimated lead time: 24 days *
PreOrder
D84
€
441,00
per item
€
321,49
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
223700321219 Fosnova High bay luminaire
Fosnova High bay luminaire 3700 LUCENTE 3.1 CLD SENSOR
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Lamp type
LED not exchangeable
Lamp holder
None
Suitable for number of lamps
1
Type of control gear
LED operating device current-controlled
With control gear
Yes
Suitable for emergency lighting
No
Nominal voltage
(V)
210 - 240
Material housing
Aluminium
Colour housing
Anthracite
Mounting method
Pendant
With protective cover
Yes
Light sharing
Symmetric
Height/depth
(mm)
124
Protection class
I
Degree of protection (IP)
IP65
Impact strength
IK08
With light source
Yes
Voltage type
AC
Rated luminous flux according to IEC 62722-2-1
(lm)
21000
Colour of light
White
Colour temperature
(K)
4000 - 4000
Colour rendering index CRI
80-89
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Dimming potentiometer (integrated)
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
No dim function
Yes
Light distributor
Other
Beam angle
Extreme wide beam >80°
Rated ambient temperature according to IEC62722-2-1
(°C)
-30 - 40
Max. system power
(W)
200
Luminaire efficacy
(lm/W)
140
Power factor
0.9
Outer diameter
(mm)
310
Type of wiring
Ending
Number of poles
3
Conductor cross section
(mm²)
1.5
Connection type
Other
Operation by Bluetooth
No
Photobiological safety according to EN 62471
RG0
Stock and logistics
Height
210 mm
Width
350 mm
Depth
350 mm
Packaging
box
Weight
3.6 kg
HS code
94051990
